  • Factory customized graphite gold bar mold ingot gold moulding gold bar mould

  • Factory customized graphite gold bar mold ingot gold moulding gold bar mould

  • Factory customized graphite gold bar mold ingot gold moulding gold bar mould

  • Factory customized graphite gold bar mold ingot gold moulding gold bar mould

  • Factory customized graphite gold bar mold ingot gold moulding gold bar mould

Factory customized graphite gold bar mold ingot gold moulding gold bar mould

Professional China Graphite Manufacturer for Factory customized graphite gold bar mold ingot gold moulding gold bar mould products  |  Custom ingot mold Wholesale  |  Beijing Guang Xin Guo Neng Technology Co., Ltd

Inquire Now

Product Description

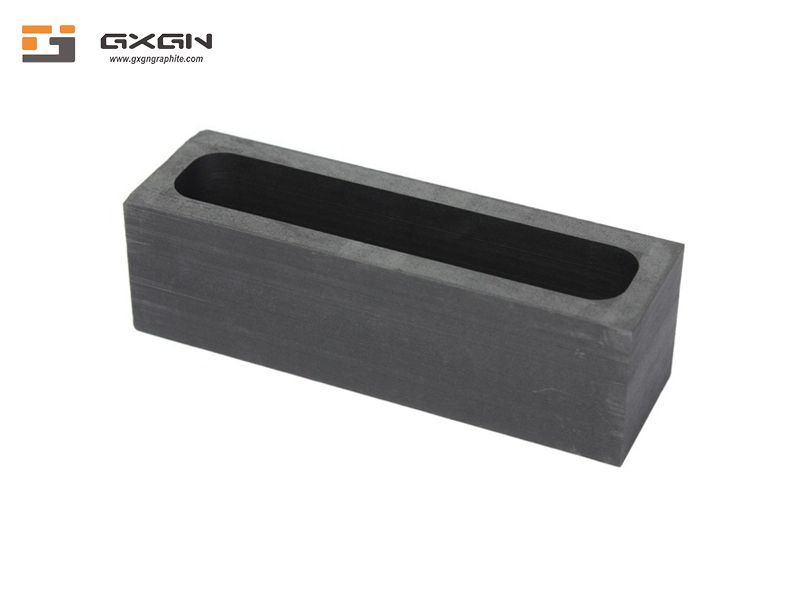

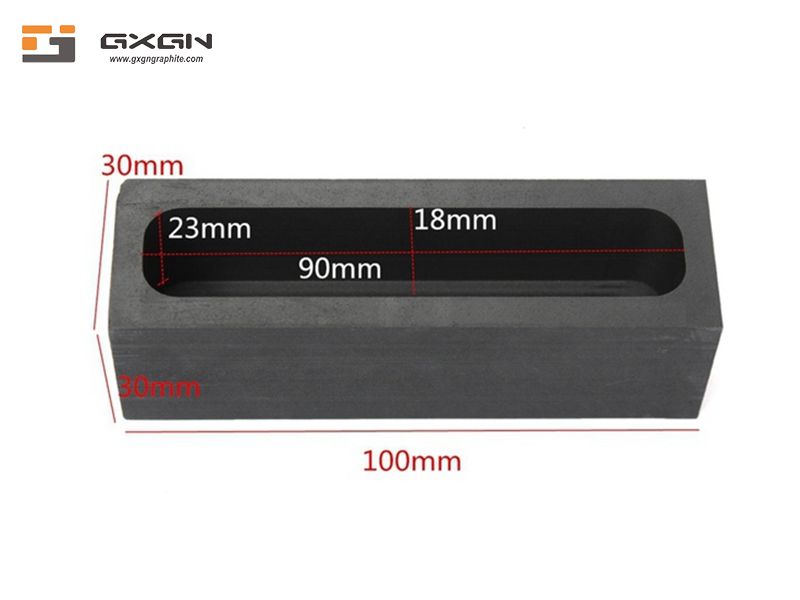

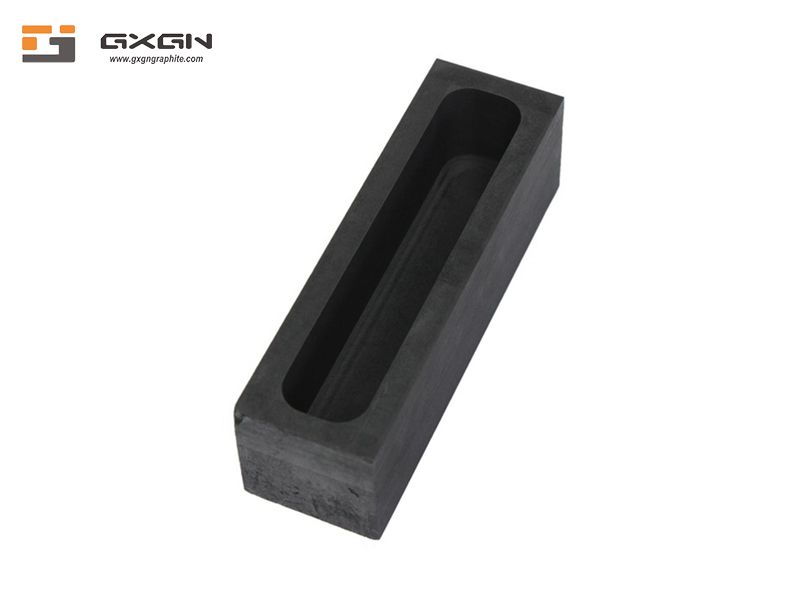

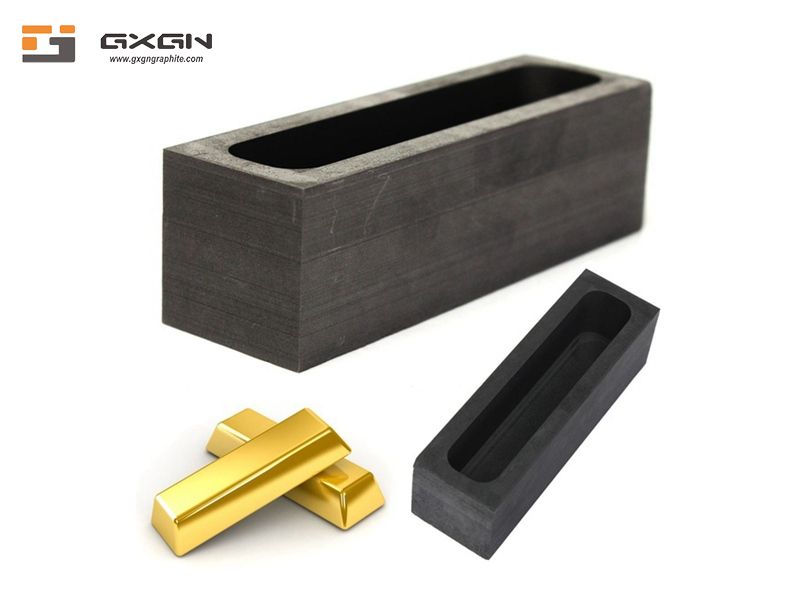

Factory customized graphite gold bar mold ingot gold moulding gold bar mould


Factory customized graphite gold bar mold ingot gold moulding gold bar mouldApplication:
Graphite products and carbon graphit ingot mould can be used in foundry, metallurgy, various high temperature industrial furnaces, glass, chemical, mechanical and electric power industries.


Laboratory metal smelting graphite boat tank high temperature resistant graphite box graphite ingot mold high purity square crucible



Custom graphite gold bar mold ingot performance:



1. Thermal stability: Specially designed to ensure the reliability of product quality in response to the conditions of rapid heating and cooling of graphite crucibles.



2. Corrosion resistance: The uniform and fine matrix design delays the degree of erosion of the crucible.



3. Impact resistance: The thermal shock strength that the graphite crucible can withstand is extremely high, so any process can be safely carried out.



4. Acid resistance: The addition of special materials significantly improves the quality of the crucible, excels in the acid resistance index, and greatly extends the service life of the graphite crucible.



5. High thermal conductivity: The high content of fixed carbon ensures good thermal conductivity, shortens the dissolution time, and significantly reduces fuel consumption or other energy consumption.



6. Control of metal pollution: The strict control of the material composition ensures that the graphite crucible does not pollute the metal when dissolved.



7. Quality stability: The manufacturing technology and quality assurance system of the high-pressure forming method more fully ensure the quality stability.

Product Parameters

CategoryBulk DensityResistivityShore HardnessFlexural StrengthCompressive StrengthYoung's ModulusPorosityAsh ContentGrain SizeCoefficient of Thermal ExpansionThermal ConductivityApplication Fields
g/cm³μΩmHSDMpaMpaGpa%PPMμm(indoor temp~600℃) 10^-6/℃(100℃) W/m﹒k
Molded GraphiteGXMG-11.6511~143015281523%/4mm2.650~60Crucible, Conventional Cast, etc
GXMG-21.6811~143517351320%/2mm3.560~80Crucible, Conventional Cast, Carbon Brushest, etc
GXMG-31.7010~134215351418%/0.8mm1.862~80Crucible, Alloy Cast, Carbon Brushest, etc
GXMG-41.7210~134224401317%/0.8mm1.565~85Crucible, Alloy Cast, Sintering Mold, Rodt, etc
GXMG-51.7510~134528551315%800/1.865~85Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rodt, etc
GXMG-61.789~124628581212%800/4.580~100Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
Isostatic GraphiteGXIG-11.7510~13423560916%50013~18μm4.880~120Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
GXIG-21.789~1242~5038701012%50010~15μm4.880~100Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
GXIG-31.809~1345~6040951112%5009~15μm4.885~110EDM, Furnace, Sintering Mold, Noble Metal Metallurgyt, etc
GXIG-41.829~135046961012%50013~15μm590~110photovoltaic, EDM, Sintering Mold, Noble Metal Metallurgyt, etc
GXIG-51.859~124848951112%50013~15μm595~115
GXIG-61.889~156052110108%5008~10μm5.595~120Fuel Cell, 3D Glass Moldt, etc
GXIG-71.909~14705512511//8~10μm5.5100~130Semiconductor, photovoltaict, etc
Mechanical graphiteM106H1.69~1.78/7560160/3%//4.013Sealing, bearing, compressor carbon vane, pump accessories (temperature tolerance: <220℃)t, etc
M120K1.7~1.85/7562150/3%//4.013
M106D2.2~2.3/7060160/2%//4.015Sealing, bearing (temperature tolerance:<350℃ under aerobic conditions, <550℃ under anaerobic conditions)t, etc
M120D2.2~2.3/7565160/2%//4.015
M170D2.2~2.3/8065180/2%//4.015

Our Company

Beijing Guang Xin Guo Neng Technology Co., Ltd, was established in 2008 and is located in Beijing, China. As a professional graphite products manufacturer, we are specialized in research, development, production, sale and service of graphite electrode, graphite mold, graphite ingot mold, graphite rod, custom graphite ingot mold, and other graphite products.


Our products are widely used in various industries and fields such as aerospace, military industry, electric power, railway, non-ferrous metallurgy, machinery, semiconductors, high-temperature furnace heating and so on.


Our company has strong technical strength, excellent manufacturing equipment, standardized management system, superb production technology, and complete testing methods. It is the one of the first group to achieve ISO 9 0 0 1 certification in the same industry.


With our own factory and advanced production equipment, such as Vertical Machining Centers, CNC lathes, milling machines, sawing machines and other advanced production equipment, we can provide professional solutions based on customer requirements.


Furthermore, our staffs are experienced, committed to strict quality inspection and thoughtful customer service.


Our products are not only sold well in China, but also exported to India, Vietnam, Thailand, Russia, Germany and North America.


We also undertake OEM and ODM orders. Whether your company is selecting a product from our existing catalog or you are looking for help in engineering applications, please feel free to contact our customer service center and inform us your purchase requirements.


Welcome to visit our factory and cooperate with us in future.

Packing & Delivery

Factory Direct Sale Industrial Carbon Graphite Block
Factory Direct Sale Industrial Carbon Graphite Block
Factory Direct Sale Industrial Carbon Graphite Block

1. Inside: use PE packaging and paste specification parameters

2. For short-distance: use carton packaging & inside foam board filling up interspace (appearance can be selected without text)

3. For long-distance transportation using carton + plywood box packaging (appearance of DIY text)

4. Delivery Port: Tianjin

Graphite Products Lead Time: 10-15 days after the order confirmation. Delivery by Express, Air also accepted.

FAQ

Q1. Are you a factory or trading company?

A: We are an ISO9001-Qualified processing manufacturer with 3000 square meter of its own factory.

Q2. Can you introduce your main products?

A: Sure.

Beijing Guang Xin Guo Neng Technology Co., Ltd mainly produce graphite products, we can offer customized shape according to customers' specific demand. Our Graphite Products, include extruded graphite products, vibration moulding graphite products, molded graphite products, isostatic graphite products. We can produce a lot of graphite products, like graphite mold, graphite casting die, graphite heating element, graphite crucible, graphite sealing ring, graphite tube, graphite rod, graphite edm, graphite block etc.

Q3.What is your MOQ?

A: 1 piece (graphite block, graphite bearing, graphite material, graphite seal ring, graphite crucible, graphite products, graphite rod, graphite mold, graphite heater etc.).

Q4. Can you offer free samples?

A: Yes, usually we can offer free sample for you to check the quality, but do not pay the courier fee.
However, if the sample is expensive, like large size, we has to charge basic cost of the sample.
And Samples delivery time will be about 3-10 days.

Q5. When can I get the price?

A: We will reply you within 24 hours after getting your detailed requirements, like size, quantity etc. If it is an urgent order, you can call us directly.

Q6. Do you accept OEM or ODM orders?

A: Yes, we do.

Q7. How about your delivery time?

A: Usually 7 to 15 days after payment.

Q8. Do you test your goods before delivery?

A: Yes, we do test before delivery.

Q9. How do you keep long-term business relationship?

A: 1. Good quality and competitive price to ensure mutual benefit;
2. Quick reply and sincere service.

Notice: When you contact us, please show us the accurate drawing and your selected graphite material information, then we can offer you accurate price.
