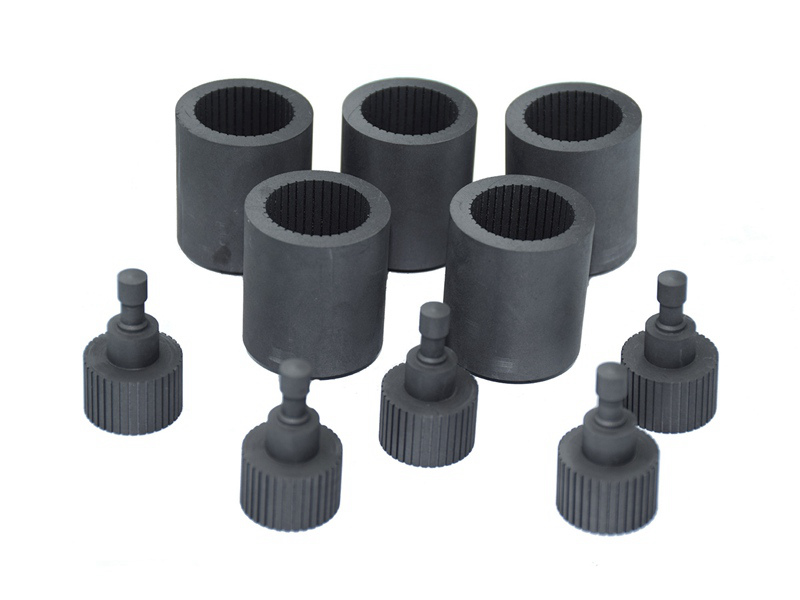

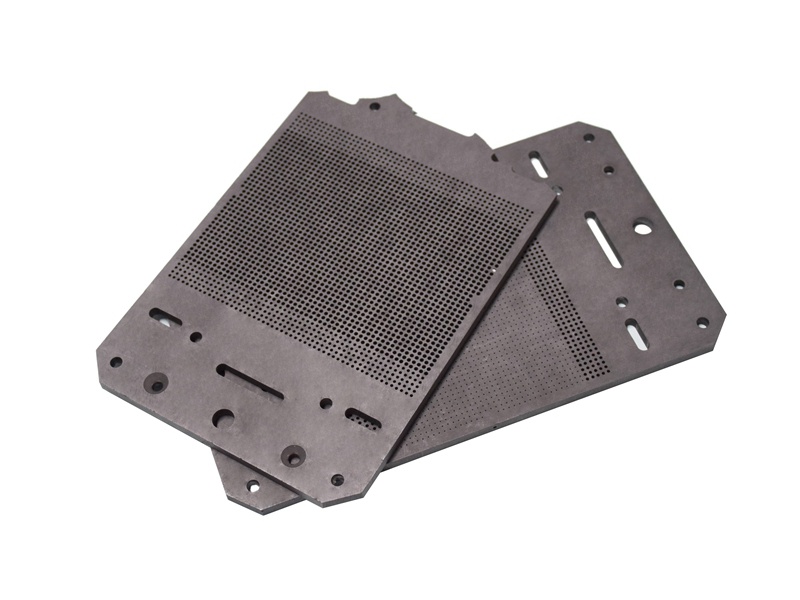

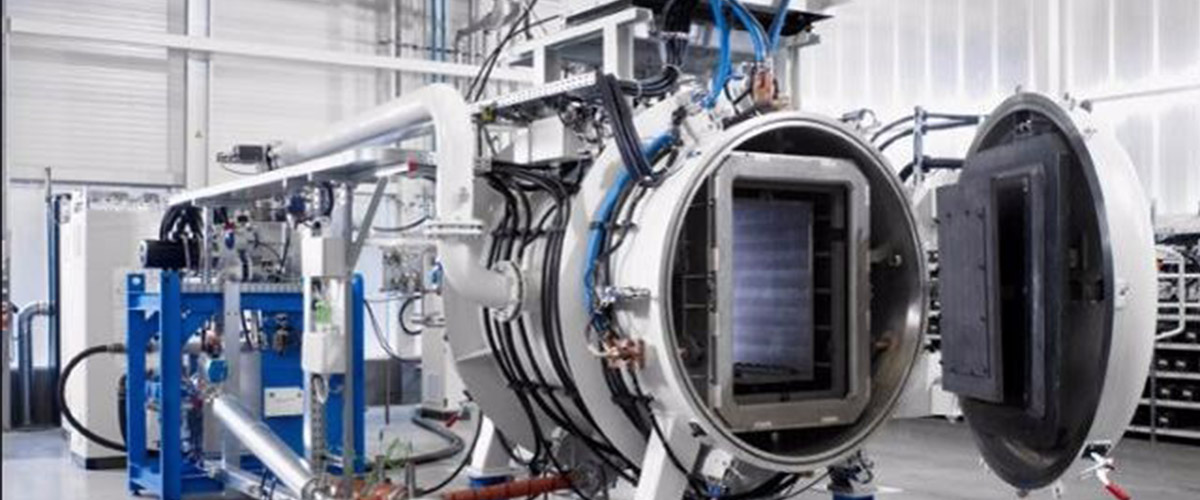

We produce the sintering graphite mold, graphite boat, graphite rod using the artificial graphite material with the characters of high strength, high purity, high temperature resistance, strong anti-oxidation, corrosion resistance, etc. The products can be used for vacuum smelting, hard alloy manufacturing, pressure sintering and so on.
Reference Specifications:
Model | Ash Content | Bulk Density | Compressive Strength | Flexural Strength | Specific Resistivity | Grain size | C.T.E |
ppm | g/cm³ | Mpa | Mpa | μΩm | μm | ×10-6/℃ | |
GS 1 | 50 | 1.72 | 62 | 30 | 11~13 | 20 | 4.5 |
GS 2 | 50 | 1.77 | 70 | 35 | 11~13 | 20 | 4.5 |
GS 3 | 50 | 1.82 | 83 | 44 | 11~13 | 20 | 4.5 |
