Custom China Graphite Supplier Sintering Graphite Mold Graphite Mould

Our company is the professional manufacturer of the graphite products, the products have passed ISO9001 certificate.

Inquire Now

Product Description

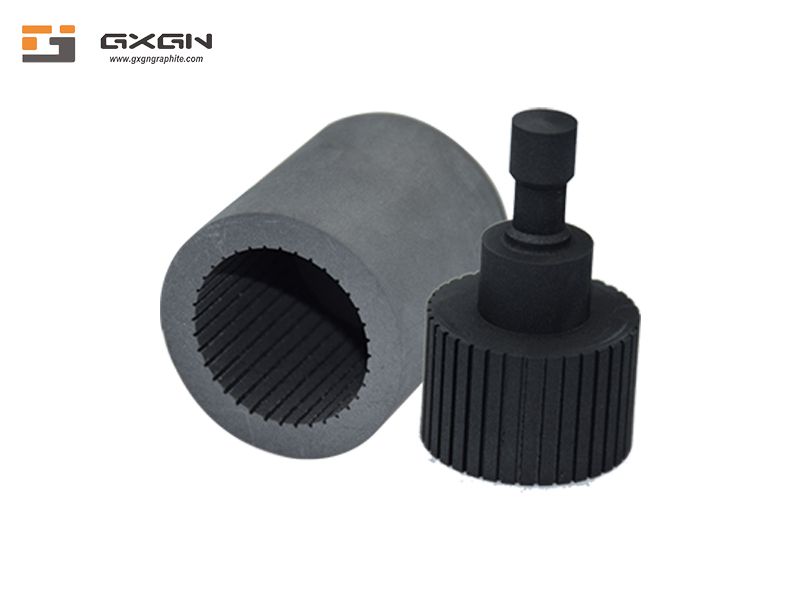

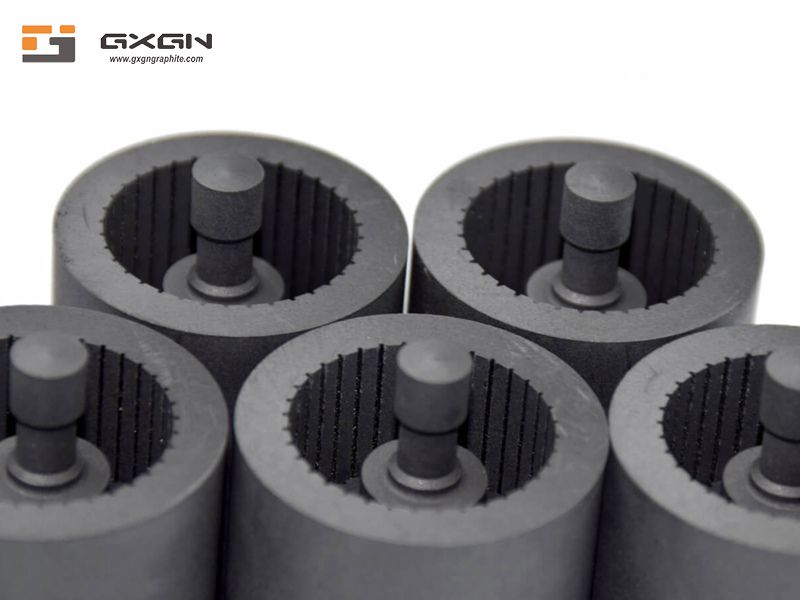

China Graphite Supplier Graphite Mold Graphite Mould


We have wide range of Graphite Sintering Moulds. Diamond tools sintered graphite moulds are mainly used in building materials and exploration areas. Diamond sintering moulds are mainly applied to produce diamond saw blade cut marble, road, tile etc. It adopts graphite materials for hot pressing and sintering of diamond cutter head. Graphite materials has property of heat resistance, oxidation resistance, hard mechanical intensity.


Product features and applications:

High purity and fine structure graphite crystallizer is widely used in casting ingots of copper, zinc and other industry technology. It has many features like good heat conductivity, slow cooling, lubrication and resistance to high temperature small linear thermal expansion coefficient etc.

Please contact us for your any need.


Product Parameters

CategoryBulk DensityResistivityShore HardnessFlexural StrengthCompressive StrengthYoung's ModulusPorosityAsh ContentGrain SizeCoefficient of Thermal ExpansionThermal ConductivityApplication Fields
g/cm³μΩmHSDMpaMpaGpa%PPMμm(indoor temp~600℃) 10^-6/℃(100℃) W/m﹒k
Molded GraphiteGXMG-11.6511~143015281523%/4mm2.650~60Crucible, Conventional Cast, etc
GXMG-21.6811~143517351320%/2mm3.560~80Crucible, Conventional Cast, Carbon Brushest, etc
GXMG-31.7010~134215351418%/0.8mm1.862~80Crucible, Alloy Cast, Carbon Brushest, etc
GXMG-41.7210~134224401317%/0.8mm1.565~85Crucible, Alloy Cast, Sintering Mold, Rodt, etc
GXMG-51.7510~134528551315%800/1.865~85Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rodt, etc
GXMG-61.789~124628581212%800/4.580~100Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
Isostatic GraphiteGXIG-11.7510~13423560916%50013~18μm4.880~120Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
GXIG-21.789~1242~5038701012%50010~15μm4.880~100Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
GXIG-31.809~1345~6040951112%5009~15μm4.885~110EDM, Furnace, Sintering Mold, Noble Metal Metallurgyt, etc
GXIG-41.829~135046961012%50013~15μm590~110photovoltaic, EDM, Sintering Mold, Noble Metal Metallurgyt, etc
GXIG-51.859~124848951112%50013~15μm595~115
GXIG-61.889~156052110108%5008~10μm5.595~120Fuel Cell, 3D Glass Moldt, etc
GXIG-71.909~14705512511//8~10μm5.5100~130Semiconductor, photovoltaict, etc
Mechanical graphiteM106H1.69~1.78/7560160/3%//4.013Sealing, bearing, compressor carbon vane, pump accessories (temperature tolerance: <220℃)t, etc
M120K1.7~1.85/7562150/3%//4.013
M106D2.2~2.3/7060160/2%//4.015Sealing, bearing (temperature tolerance:<350℃ under aerobic conditions, <550℃ under anaerobic conditions)t, etc
M120D2.2~2.3/7565160/2%//4.015
M170D2.2~2.3/8065180/2%//4.015

Our Company

Beijing Guang Xin Guo Neng Technology Co., Ltd, was established in 2008 and is located in Beijing, China. As a professional graphite products manufacturer, we are specialized in research, development, production, sale and service of graphite in graphite electrode, graphite mold, graphite powder, graphite rod and other graphite products.


Our products are widely used in various industries and fields such as aerospace, military industry, electric power, railway, non-ferrous metallurgy, machinery, semiconductors, high-temperature furnace heating and so on.


Our company has strong technical strength, excellent manufacturing equipment, standardized management system, superb production technology, and complete testing methods. It is the one of the first group to achieve ISO 9 0 0 1 certification in the same industry.


With our own factory and advanced production equipment, such as Vertical Machining Centers, CNC lathes, milling machines, sawing machines and other advanced production equipment, we can provide professional solutions based on customer requirements.


Furthermore, our staffs are experienced, committed to strict quality inspection and thoughtful customer service.


Our products are not only sold well in China, but also exported to India, Vietnam, Thailand, Russia, Germany and North America.


We also undertake OEM and ODM orders. Whether your company is selecting a product from our existing catalog or you are looking for help in engineering applications, please feel free to contact our customer service center and inform us your purchase requirements.


Welcome to visit our factory and cooperate with us in future.

Packing & Delivery

Factory Direct Sale Industrial Carbon Graphite Block
Factory Direct Sale Industrial Carbon Graphite Block
Factory Direct Sale Industrial Carbon Graphite Block

1. Inside: use PE packaging and paste specification parameters

2. For short-distance: use carton packaging & inside foam board filling up interspace (appearance can be selected without text)

3. For long-distance transportation using carton + plywood box packaging (appearance of DIY text)

4. Delivery Port: Tianjin

Graphite Products Lead Time: 10-15 days after the order confirmation. Delivery by Express, Air also accepted.

FAQ

Q1. Are you a factory or trading company?

A: We are an ISO9001-Qualified processing manufacturer with 3000 square meter of its own factory.

Q2. Can you introduce your main products?

A: Sure.

Beijing Guang Xin Guo Neng Technology Co., Ltd mainly produce graphite products, we can offer customized shape according to customers' specific demand. Our Graphite Products, include extruded graphite products, vibration moulding graphite products, molded graphite products, isostatic graphite products. We can produce a lot of graphite products, like graphite mold, graphite casting die, graphite heating element, graphite crucible, graphite sealing ring, graphite tube, graphite rod, graphite edm, graphite block etc.

Q3.What is your MOQ?

A: 1 piece (graphite block, graphite bearing, graphite material, graphite seal ring, graphite crucible, graphite products, graphite rod, graphite mold, graphite heater etc.).

Q4. Can you offer free samples?

A: Yes, usually we can offer free sample for you to check the quality, but do not pay the courier fee.
However, if the sample is expensive, like large size, we has to charge basic cost of the sample.
And Samples delivery time will be about 3-10 days.

Q5. When can I get the price?

A: We will reply you within 24 hours after getting your detailed requirements, like size, quantity etc. If it is an urgent order, you can call us directly.

Q6. Do you accept OEM or ODM orders?

A: Yes, we do.

Q7. How about your delivery time?

A: Usually 7 to 15 days after payment.

Q8. Do you test your goods before delivery?

A: Yes, we do test before delivery.

Q9. How do you keep long-term business relationship?

A: 1. Good quality and competitive price to ensure mutual benefit;
2. Quick reply and sincere service.

Notice: When you contact us, please show us the accurate drawing and your selected graphite material information, then we can offer you accurate price.
