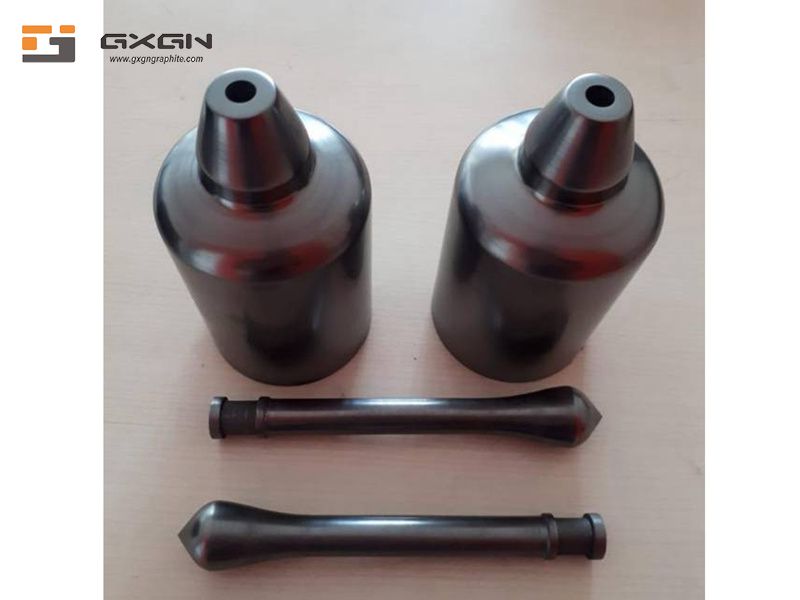

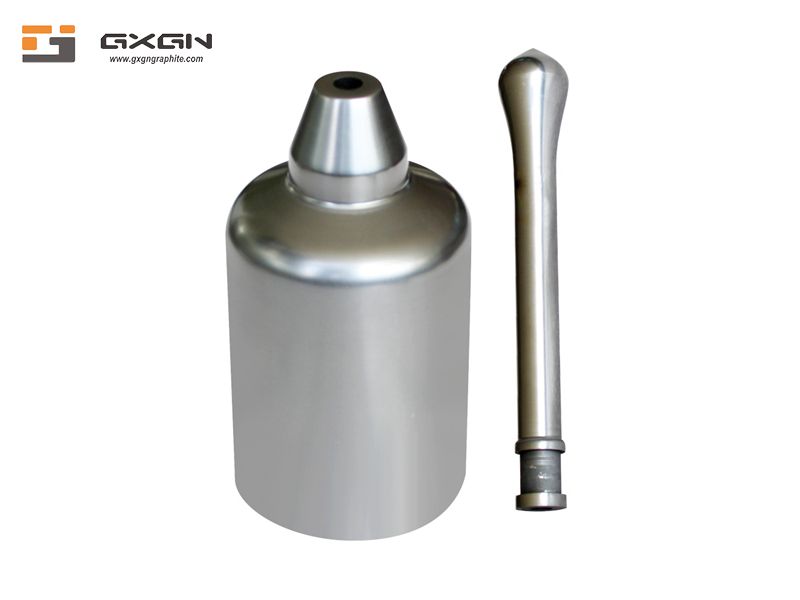

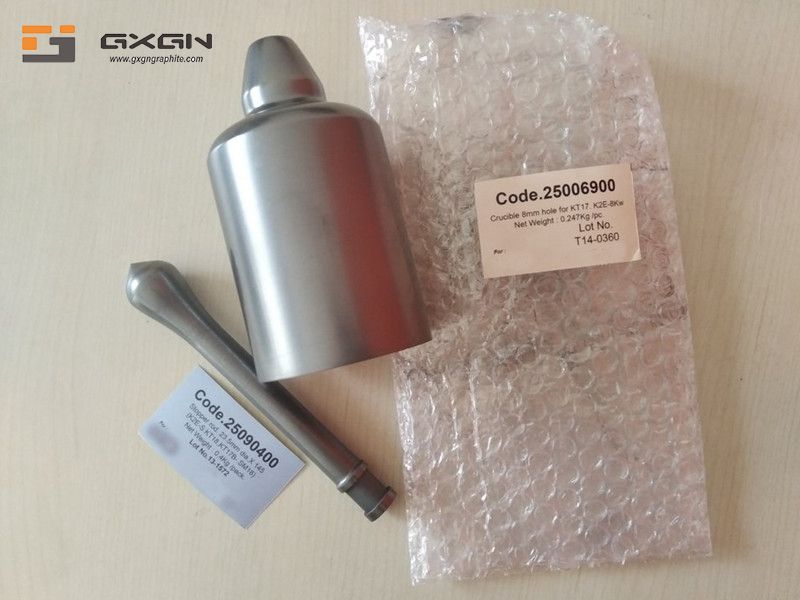

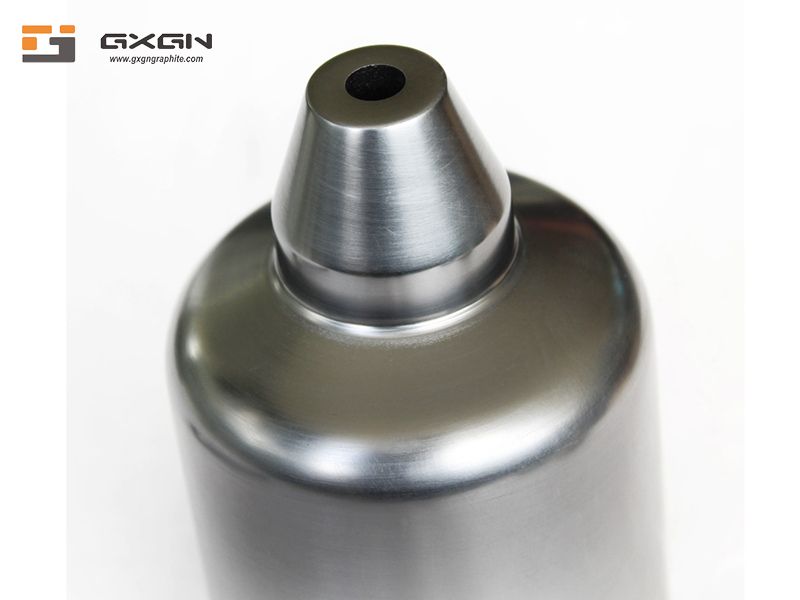

High Pure Yasui Graphite Casting Crucible for Gold Silver Melting Casting
Customers can avail from us Graphite Melting Crucible in numerous sizes and grades. These products have high temperature and pressure bearing capacity and are suitable for quality melting and hence, widely demanded by maker of chains. Clients can avail these graphite crucibles in various varieties. Graphite crucible can used for graphite crucible gold, graphite crucible silver, graphite crucible brass, graphite crucible for sale.
High density graphite melting crucibles find wide applications in vacuum/ inert atmosphere furnaces are available Almost similar to grade 2 but cheaper by fifteen to twenty percent. Chain makers mainly demand economical and high quality graphite crucibles
In general, the inspection work of graphite casting crucible before use should mainly do the following:
1. First, check the graphite casting crucible for cracks before work. If there is no crack, the graphite crucible should be heated to 600 ° C or more and fully dried.
2. There should be no water around the furnace and in the pit in front of the furnace, and irrelevant objects should not be stacked near the graphite crucible.
3. Strictly inspect the furnace charge for explosives. The furnace charge must be preheated and dry, and the graphite crucible must be slow.
Before using the graphite melting crucible, be sure to do the above points, otherwise it is very likely to cause the graphite casting crucible to explode during use.
The main purpose of the graphite melting crucible is to heat the experimental material that needs to be heated. Generally, the graphite crucible is used to heat the solid material in the experiment. The graphite crucible has a variety of models. The crucible can be selected according to the number and type of materials to be heated and the degree of thermal expansion. model. In general, when using graphite melting crucibles, we must pay attention not to fill the crucible with heated materials, which is very dangerous, not only easily cause experimental accidents, but also have a great impact on the life of the graphite crucible. In addition, it should be noted that under normal circumstances the crucible must be heated to four or five Baidu, at this time must not place graphite melting crucible or touch the graphite crucible by hand, this is very dangerous.
1. The requirements for the fire resistance of graphite crucibles are very high. Therefore, we must require the fire resistance of the raw materials of graphite crucibles, so that the graphite crucibles can be used more safely;
2. We often use graphite casting crucibles in chemical smelting that is more corrosive, so the chemical stability of graphite crucibles is also very important, so that corrosion can be reduced;
3. The hardness and toughness of graphite crucible are also factors we need to consider, to avoid brittle fracture of graphite crucible in use.
The above is the material selection method we should adopt when making graphite melting crucibles. Only by selecting materials according to the above standards, can graphite melting crucibles be able to give full play to its performance.
|Category||Bulk Density||Resistivity||Shore Hardness||Flexural Strength||Compressive Strength||Young's Modulus||Porosity||Ash Content||Grain Size||Coefficient of Thermal Expansion||Thermal Conductivity||Application Fields|
|g/cm³||μΩm||HSD||Mpa||Mpa||Gpa||%||PPM||μm||(indoor temp~600℃) 10^-6/℃||(100℃) W/m﹒k|
|Molded Graphite||GXMG-1||1.65||11~14||30||15||28||15||23%||/||4mm||2.6||50~60||Crucible, Conventional Cast, etc|
|GXMG-2||1.68||11~14||35||17||35||13||20%||/||2mm||3.5||60~80||Crucible, Conventional Cast, Carbon Brushest, etc|
|GXMG-3||1.70||10~13||42||15||35||14||18%||/||0.8mm||1.8||62~80||Crucible, Alloy Cast, Carbon Brushest, etc|
|GXMG-4||1.72||10~13||42||24||40||13||17%||/||0.8mm||1.5||65~85||Crucible, Alloy Cast, Sintering Mold, Rodt, etc|
|GXMG-5||1.75||10~13||45||28||55||13||15%||800||/||1.8||65~85||Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rodt, etc|
|GXMG-6||1.78||9~12||46||28||58||12||12%||800||/||4.5||80~100||Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc|
|Isostatic Graphite||GXIG-1||1.75||10~13||42||35||60||9||16%||500||13~18μm||4.8||80~120||Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc|
|GXIG-2||1.78||9~12||42~50||38||70||10||12%||500||10~15μm||4.8||80~100||Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc|
|GXIG-3||1.80||9~13||45~60||40||95||11||12%||500||9~15μm||4.8||85~110||EDM, Furnace, Sintering Mold, Noble Metal Metallurgyt, etc|
|GXIG-4||1.82||9~13||50||46||96||10||12%||500||13~15μm||5||90~110||photovoltaic, EDM, Sintering Mold, Noble Metal Metallurgyt, etc|
|GXIG-6||1.88||9~15||60||52||110||10||8%||500||8~10μm||5.5||95~120||Fuel Cell, 3D Glass Moldt, etc|
|GXIG-7||1.90||9~14||70||55||125||11||/||/||8~10μm||5.5||100~130||Semiconductor, photovoltaict, etc|
|Mechanical graphite||M106H||1.69~1.78||/||75||60||160||/||3%||/||/||4.0||13||Sealing, bearing, compressor carbon vane, pump accessories (temperature tolerance: <220℃)t, etc|
|M106D||2.2~2.3||/||70||60||160||/||2%||/||/||4.0||15||Sealing, bearing (temperature tolerance:<350℃ under aerobic conditions, <550℃ under anaerobic conditions)t, etc|
We focus on graphite processing for 20 years and have rich design and processing experience. Protect your most concerned data (material indicators, product quality, delivery time, cost and accuracy).
There are dozens of product designers, graphite mould designers, programmers, craftsmen and other technical personnel; skilled technicians will ensure that your products are processed and delivered as required.
No matter which drawing file you send (x_t / prt / dwg / pdf / exb, ect ..), we can process it according to the drawings.
Dozens of CNC machining centers, dozens of CNC lathes, milling machines, grinding machines, sawing machines, etc.
Material indicators: tear resistance, compression resistance, impact resistance, resistivity, ash, strength, density and other data professional testing (universal testing machine, impact testing machine, resistivity tester, etc.)
We can design graphite mold by customer's parts drawing, and process all kinds of complex and special shape mold or other production.
We are the direct supplier of ZGM system with good quality. Inventory: ZGM50/65/80/95/113/123/133 all series carbon ring
Sale Graphite products: all kinds of graphite melting crucibles, graphite casting crucible, graphite crucible sizes, graphite heaters, graphite junction plates, graphite electrode rods, graphite tubes, graphite bolts and nuts, graphite bearings, graphite sealing rings, and buy graphite crucible etc.
Packing & Delivery
Q1. Are you a factory or trading company?
Q2. Can you introduce your main products?
Beijing Guang Xin Guo Neng Technology Co., Ltd mainly produce graphite products, we can offer customized shape according to customers' specific demand. Our Graphite Products, include extruded graphite products, vibration moulding graphite products, molded graphite products, isostatic graphite products. We can produce a lot of graphite products, like graphite mold, graphite casting die, graphite heating element, graphite crucible, graphite sealing ring, graphite tube, graphite rod, graphite edm, graphite block etc.
Q3.What is your MOQ?
Q4. Can you offer free samples?
Q5. When can I get the price?
Q6. Do you accept OEM or ODM orders?
Q7. How about your delivery time?
Q8. Do you test your goods before delivery?
Q9. How do you keep long-term business relationship?
Notice: When you contact us, please show us the accurate drawing and your selected graphite material information, then we can offer you accurate price.
