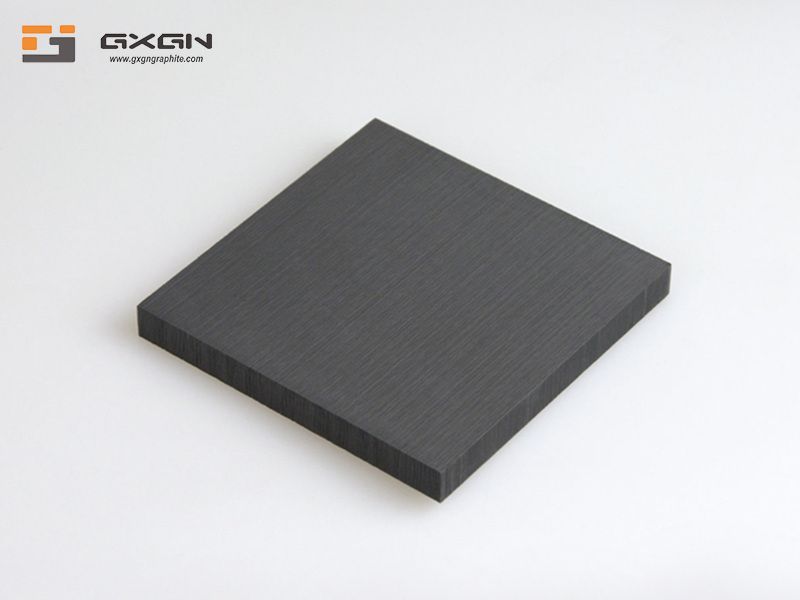

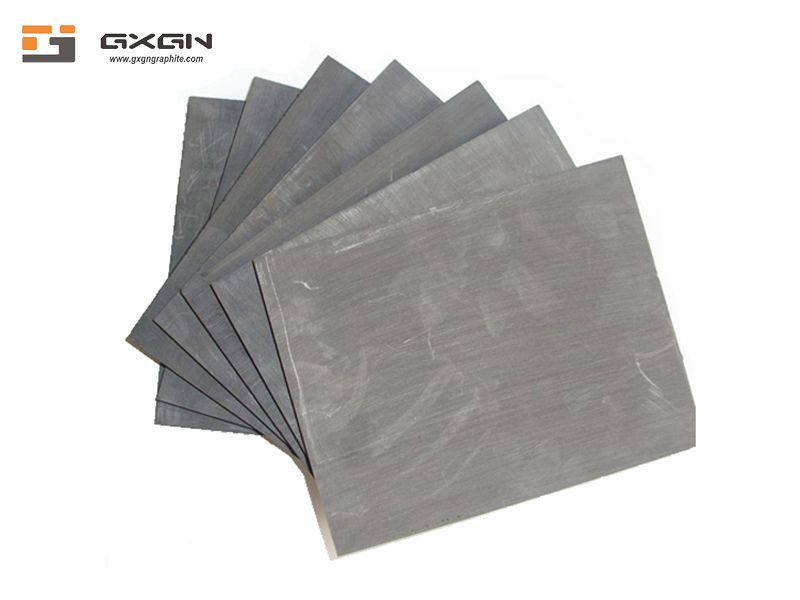

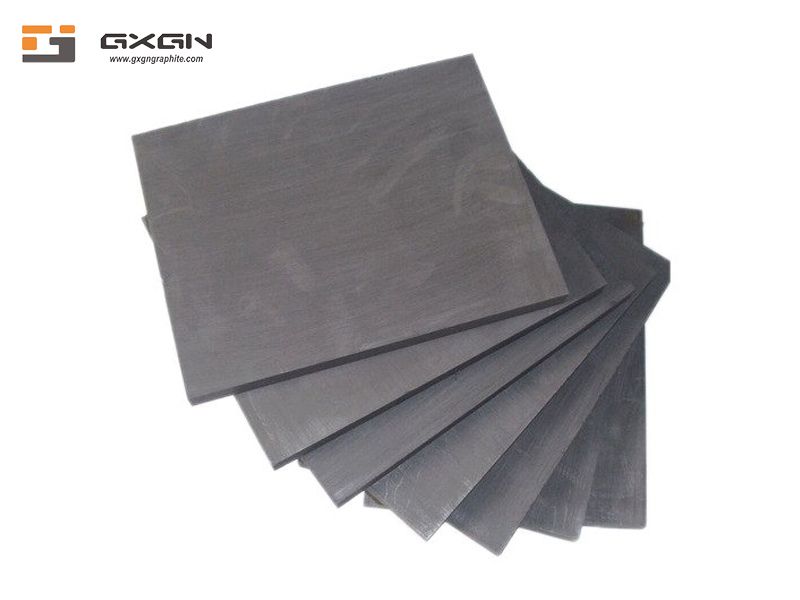

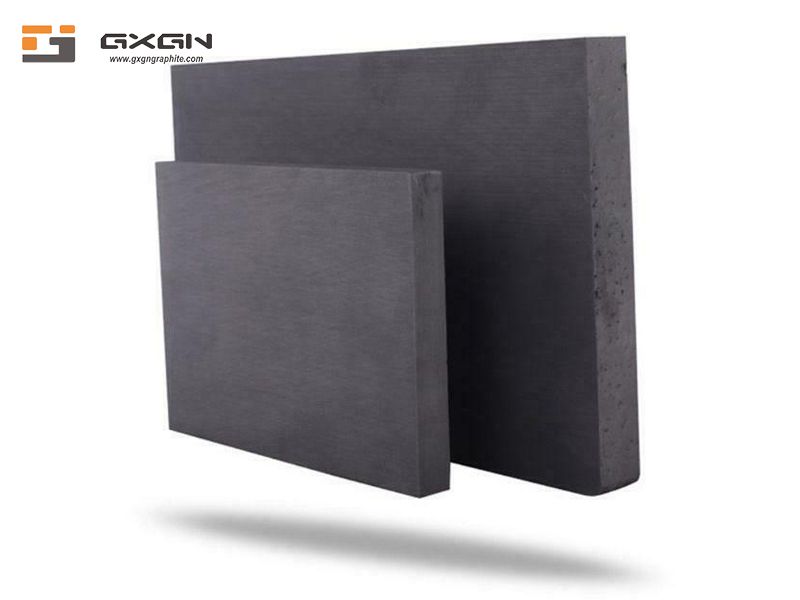

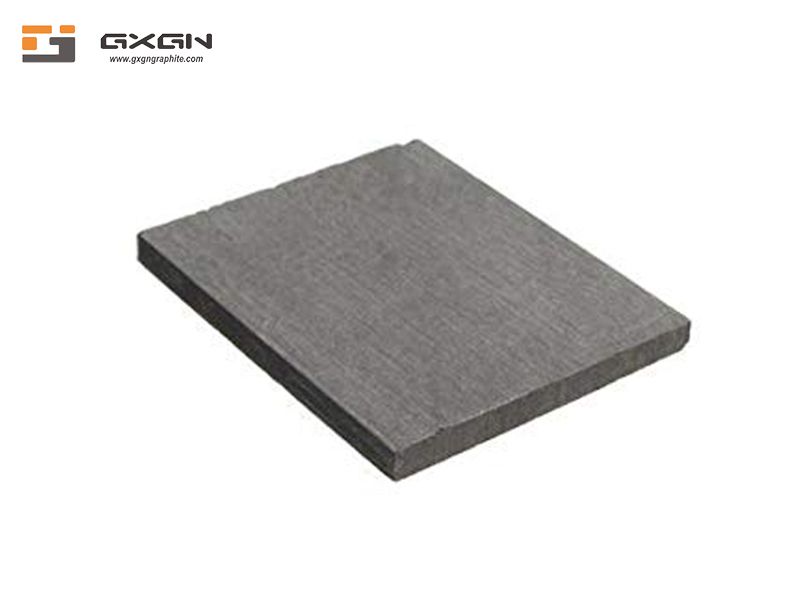

China factory offer carbon graphite cathode and anode graphite plates

12 years Graphite Products Graphite Cathode and Anode factory  |  OEM & ODM accepted  | Customized High-precision Processing

Inquire Now

Product Description

Customized China Graphite Supplier for China factory offer carbon graphite cathode and anode graphite plates products


1. Graphite anode plate

In the electrolytic cell, the level where the current flows into the electrolyte from here is called the graphite anode plate. In the electrolysis industry, the anode is generally made into a plate shape, so it is called the graphite anode plate, which is widely used in electric ferry, wastewater treatment, industrial anticorrosion equipment Or as special materials. In the electrolysis industry, the use of graphite anode plates as anodes has a history of more than 100 years, but the use of metals as anodes has been a matter of recent decades. China's research and application of metal anodes are even later, only in the 1970s Research and experiment on the technology of metal anodes. As far as 2113 anodes in the electrolysis industry are concerned, they have mainly experienced high silver (2%) and low silver (0.5%), namely lead silver alloy, lead silver tin antimony alloy, lead calcium alloy, Lead silver addition nucleating agent alloy and other stages.China factory offer carbon graphite cathode and anode graphite plates

Compared with other materials, graphite anode plates have the advantages of high temperature resistance, good electrical and thermal conductivity, easy mechanical processing, good chemical stability, acid and alkali corrosion resistance, low ash content, etc.; used in electrolytic aqueous solutions, preparation of chlorine, caustic soda, electrolysis Salt solution is used to prepare alkali; for example, graphite anode plate can be used as electrolysis salt solution to prepare conductive anode of caustic soda. Application Graphite anode plate can be used as a conductive anode in the electroplating industry and is an ideal material for various electroplating; making electroplated products have the advantages of smooth, delicate, wear-resistant, corrosion-resistant, high brightness, and not easy to change color.

2. graphite cathode carbon plate

Carbon block made from high-quality anthracite, coke, graphite and other raw materials. Used as the cathode of an aluminum electrolytic cell. It is built on the bottom of the electrolytic cell, also known as the bottom carbon block. Characteristics The cathode carbon block plays the dual role of conducting electricity and forming the lining of the electrolytic cell. Aluminum electrolytic production requires high temperature resistance of the cathode carbon block. The characteristics of resistance to molten salt erosion, good electrical conductivity, good thermal conductivity, high mechanical strength, good thermal shock resistance and strong resistance to sodium erosion are conducive to energy saving and longevity of aluminum electrolytic production. The types of cathode carbon blocks are based on the requirements of 5261 for the quality of the products, the raw materials selected and the process conditions. China basically divides the cathode carbon blocks into three categories: ordinary cathode carbon blocks, semi-graphite carbon blocks and graphite carbon blocks. Ordinary cathode carbon block uses anthracite calcined at 1250~1350℃ as its main raw material. Semi-graphite carbon blocks are divided into two types according to different production processes.

China factory offer carbon graphite cathode and anode graphite platesOne is to use high-quality high-temperature electrical calcination of anthracite coal, or more graphite fragments or even all graphite fragments as aggregate. The green products after molding are only roasted (roasting temperature does not exceed 1200 ℃) and no longer go into graphitization Furnace heat treatment, this carbon block is called semi-graphite carbon block.

Another kind of easily graphitized coke is used as aggregate. After roasting the raw product, it enters the graphitization furnace for heat treatment at a temperature of 1800~2000℃. This kind of carbon block is called semi-graphite (chemical) carbon block.

The former has higher strength and hardness, while the latter has better conductivity and integrity. Graphite carbon block is made of easy graphitized coke and its graphitization temperature should reach about 2500℃. The difference between a semi-graphite carbon block and a graphite carbon block is the degree of orderly arrangement of the product lattice, that is, the degree of graphitization. The degree of graphitization can be expressed by the resistivity of the product. The lattice of the graphite carbon block is basically in an orderly arrangement, and the resistivity is less than 15μΩm; the graphitization degree of the semi-graphite carbon block is low or only partially graphitized, and the resistivity is 15 to 165345μΩm. The process is represented by the heat treatment temperature. The maximum heat treatment temperature of the semi-graphite carbon block is about 2000°C, and the graphitization temperature of the graphite carbon block is 2500-2800°C. Ordinary cathode carbon block, resistivity 50~60μΩm. The graphitized cathode is a conductive material used in the cathode of an aluminum electrolytic cell, and represents the development direction of the electrolytic aluminum industry. With the technological progress and development of the electrolytic aluminum industry, the electrolytic cell is developing in the direction of large capacity above 300KVA, and the requirements for cathode materials are higher. The main advantages of graphitized cathodes are to strengthen the current, improve the current efficiency, achieve the purpose of increasing production and energy saving, and to stabilize the operation of the electrolytic cell. The larger the tank type, the more stable the running effect is, the more obvious the current efficiency is. The unit production capacity is increased by 10-15%, and the energy saving per ton of aluminum is more than 600KWh. The graphitized cathode aluminum electrolysis cell is one of the materials that the country preferentially promotes and develops in the electrolytic aluminum industry due to its obvious energy-saving, consumption-reducing and emission-reducing effects.

Product Parameters

CategoryBulk DensityResistivityShore HardnessFlexural StrengthCompressive StrengthYoung's ModulusPorosityAsh ContentGrain SizeCoefficient of Thermal ExpansionThermal ConductivityApplication Fields
g/cm³μΩmHSDMpaMpaGpa%PPMμm(indoor temp~600℃) 10^-6/℃(100℃) W/m﹒k
Molded GraphiteGXMG-11.6511~143015281523%/4mm2.650~60Crucible, Conventional Cast, etc
GXMG-21.6811~143517351320%/2mm3.560~80Crucible, Conventional Cast, Carbon Brushest, etc
GXMG-31.7010~134215351418%/0.8mm1.862~80Crucible, Alloy Cast, Carbon Brushest, etc
GXMG-41.7210~134224401317%/0.8mm1.565~85Crucible, Alloy Cast, Sintering Mold, Rodt, etc
GXMG-51.7510~134528551315%800/1.865~85Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rodt, etc
GXMG-61.789~124628581212%800/4.580~100Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
Isostatic GraphiteGXIG-11.7510~13423560916%50013~18μm4.880~120Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
GXIG-21.789~1242~5038701012%50010~15μm4.880~100Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
GXIG-31.809~1345~6040951112%5009~15μm4.885~110EDM, Furnace, Sintering Mold, Noble Metal Metallurgyt, etc
GXIG-41.829~135046961012%50013~15μm590~110photovoltaic, EDM, Sintering Mold, Noble Metal Metallurgyt, etc
GXIG-61.889~156052110108%5008~10μm5.595~120Fuel Cell, 3D Glass Moldt, etc
GXIG-71.909~14705512511//8~10μm5.5100~130Semiconductor, photovoltaict, etc
Mechanical graphiteM106H1.69~1.78/7560160/3%//4.013Sealing, bearing, compressor carbon vane, pump accessories (temperature tolerance: <220℃)t, etc
M106D2.2~2.3/7060160/2%//4.015Sealing, bearing (temperature tolerance:<350℃ under aerobic conditions, <550℃ under anaerobic conditions)t, etc

Our Strength

We focus on graphite processing for 20 years and have rich design and processing experience. Protect your most concerned data (material indicators, product quality, delivery time, cost and accuracy).

There are dozens of product designers, mold designers, programmers, craftsmen and other technical personnel; skilled technicians will ensure that your products are processed and delivered as required.

No matter which drawing file you send (x_t / prt / dwg / pdf / exb, ect ..), we can process it according to the drawings.

Dozens of CNC machining centers, dozens of CNC lathes, milling machines, grinding machines, sawing machines, etc.

Material indicators: tear resistance, compression resistance, impact resistance, resistivity, ash, strength, density and other data professional testing (universal testing machine, impact testing machine, resistivity tester, etc.)

We can design graphite mold by customer's parts drawing, and process all kinds of complex and special shape mold or other production.

We are the direct supplier of ZGM system with good quality. Inventory: ZGM50/65/80/95/113/123/133 all series carbon ring

Guang Xin Guo Neng Graphite production: all kinds of graphite crucibles, graphite heaters, graphite junction plates, graphite cathode plate, graphite anode plate, graphite electrode rods, graphite tubes, graphite bolts and nuts, graphite bearings, graphite sealing rings, graphite connecting plate, graphite connection plate and etc.

Packing & Delivery

Factory Direct Sale Industrial Carbon Graphite Block
Factory Direct Sale Industrial Carbon Graphite Block
Factory Direct Sale Industrial Carbon Graphite Block

1. Inside: use PE packaging and paste specification parameters

2. For short-distance: use carton packaging & inside foam board filling up interspace (appearance can be selected without text)

3. For long-distance transportation using carton + plywood box packaging (appearance of DIY text)

4. Delivery Port: Tianjin

Graphite Products Lead Time: 10-15 days after the order confirmation. Delivery by Express, Air also accepted.


Q1. Are you a factory or trading company?

A: We are an ISO9001-Qualified processing manufacturer with 3000 square meter of its own factory.

Q2. Can you introduce your main products?

A: Sure.

Beijing Guang Xin Guo Neng Technology Co., Ltd mainly produce graphite products, we can offer customized shape according to customers' specific demand. Our Graphite Products, include extruded graphite products, vibration moulding graphite products, molded graphite products, isostatic graphite products. We can produce a lot of graphite products, like graphite mold, graphite casting die, graphite heating element, graphite crucible, graphite sealing ring, graphite tube, graphite rod, graphite edm, graphite block etc.

Q3.What is your MOQ?

A: 1 piece (graphite block, graphite bearing, graphite material, graphite seal ring, graphite crucible, graphite products, graphite rod, graphite mold, graphite heater etc.).

Q4. Can you offer free samples?

A: Yes, usually we can offer free sample for you to check the quality, but do not pay the courier fee.
However, if the sample is expensive, like large size, we has to charge basic cost of the sample.
And Samples delivery time will be about 3-10 days.

Q5. When can I get the price?

A: We will reply you within 24 hours after getting your detailed requirements, like size, quantity etc. If it is an urgent order, you can call us directly.

Q6. Do you accept OEM or ODM orders?

A: Yes, we do.

Q7. How about your delivery time?

A: Usually 7 to 15 days after payment.

Q8. Do you test your goods before delivery?

A: Yes, we do test before delivery.

Q9. How do you keep long-term business relationship?

A: 1. Good quality and competitive price to ensure mutual benefit;
2. Quick reply and sincere service.

Notice: When you contact us, please show us the accurate drawing and your selected graphite material information, then we can offer you accurate price.
