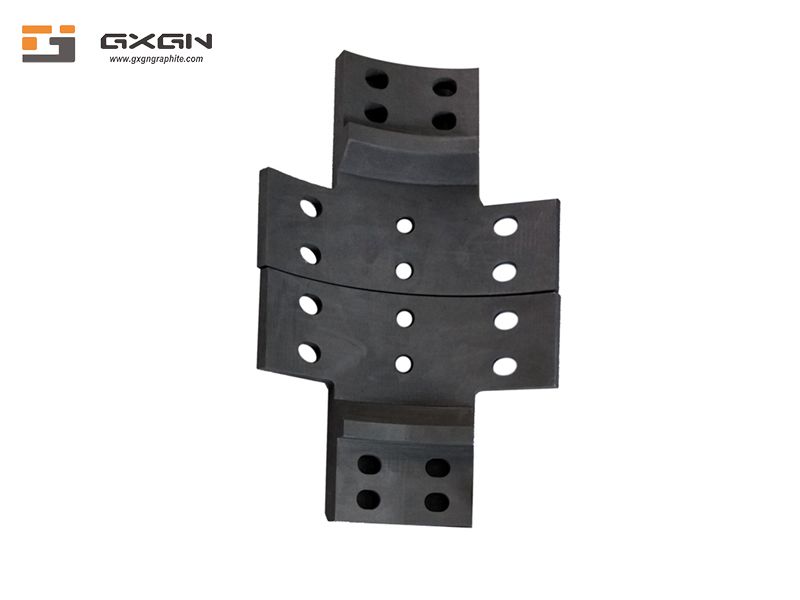

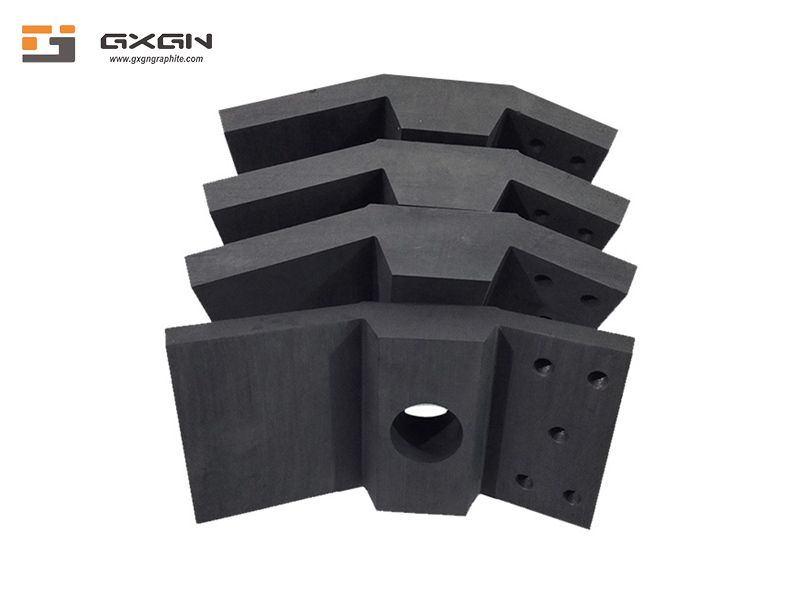

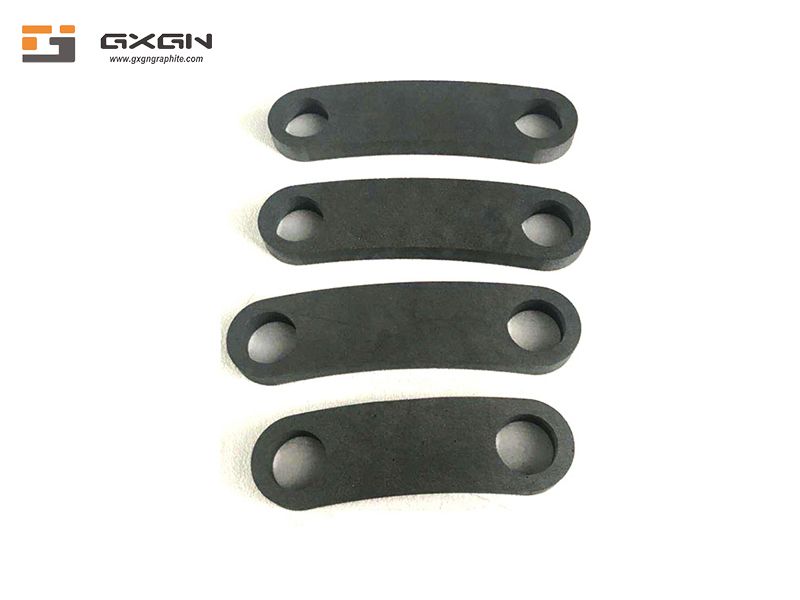

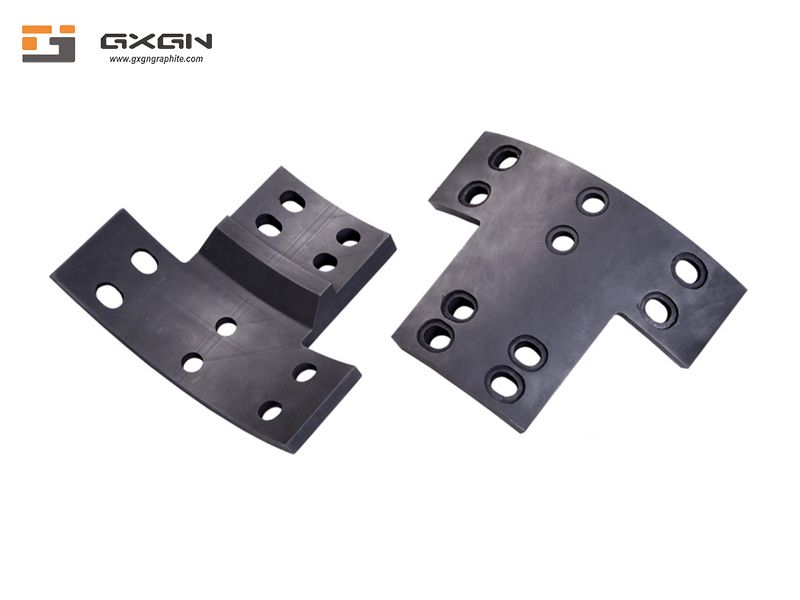

Graphite Fastenings for High Temperature Furnace Elements

12 Years Custom Graphite Products, Graphite Connecting Plate Price in China  |  OEM & ODM accepted  | Customized High-precision Processing |  GXGN Brand

Inquire Now

Product Description

Custom Graphite Fastenings for High Temperature Furnace Heating Elements in China

The graphite connecting plate is suitable for high temperature applications in a vacuum atmosphere. Because of its physical, chemical and thermal properties. The application temperature can also reach 2300 degrees Celsius, the advantages of graphite heating structure are uniform, good performance conductivity, high current capacity, high corrosion and oxidation resistance, high degree of chemical purity and high mechanical strength.


Graphite Fastenings for High Temperature Furnace ElementsThe graphite vacuum furnace accessory-graphite connecting plate produced by Beijing Guang Xin Guo Neng Technology Co., Ltd. is reliable in selecting raw materials, reliable quality and first-class service attitude.


At present, in the industrial requirements, the application of vacuum furnace graphite products in vacuum furnaces is increasing, not only for manufacturing heating elements and heat shields of vacuum furnaces, but also for manufacturing such as connecting plates, brackets, trays, guide rails, bolts, Bearings, fan blades and other stressed structural parts. The application of graphite in the vacuum furnace greatly simplifies the design and manufacture of the vacuum furnace, reduces the consumption of metals such as tungsten, molybdenum, tantalum, stainless steel, etc., reduces the cost, improves certain performance of the vacuum furnace and expands the Range of use.


Guang Xin Guo Neng's processing technology continues to improve, and its personnel technology continues to increase. At present, it is fully equipped and a variety of professional personnel have guaranteed the technology of graphite vacuum furnace accessories.


Guo Xin Guo Neng graphite materials have the following characteristics:

1.Thermal stability: Specially designed to ensure the reliability of product quality in response to the conditions of rapid heating and cooling of graphite crucible

Graphite Fastenings for High Temperature Furnace Elements

2. Erosion resistance: The uniform and compact substrate design delays the degree of erosion of the crucible.

3. Impact resistance: The thermal shock strength that the graphite crucible can withstand is extremely high, so any process can be safely carried out.

4. Acid resistance: The addition of special materials significantly improves the quality of the crucible, excels in the acid resistance index, and greatly extends the service life of the graphite crucible.

5. High thermal conductivity: The high content of fixed carbon ensures good thermal conductivity, shortens the dissolution time, and significantly reduces energy consumption.

6. Control of metal pollution: strict control of the material composition ensures that the graphite crucible does not pollute the metal when dissolved.

7. Quality stability: The manufacturing technology and quality assurance system of the high-pressure forming method more fully ensure the quality stability.


Graphite Fastenings for High Temperature Furnace ElementsGraphite products are all kinds of finished products made by artificial graphite and natural graphite. For example, the core of the battery can be counted, and then graphite rods, graphite blocks, graphite paper, etc., all count, and what graphite is used in industry The rotor is used for cast aluminum, graphite bearings, etc. The products made according to the characteristics of graphite are collectively referred to as graphite products including graphite rods, graphite blocks, graphite plates, graphite heating element, graphite adjusting plate, graphite joint part, graphite heating tube, graphite heating chamber, graphite heater tube, electrode joint, graphite carbon tubes, Graphite hot-zone, graphite rings, graphite connecting plate, graphite connection plate etc.

One of the main uses of graphite is to produce refractory materials, including refractory bricks, crucibles, continuous casting powder, mold cores, molds, detergents and high temperature resistant materials. Because graphite has many excellent properties, it has been widely used in metallurgy, machinery, electrical, chemical, textile, national defense and other industrial sectors. Therefore, graphite products have been widely used in metallurgy, chemical industry, petrochemical industry, high-energy physics, aerospace, electronics, etc.

The following graphite block manufacturers briefly introduce the characteristics of graphite products:

1.Graphite products have excellent adsorption. The open structure of charcoal makes charcoal have excellent adsorption, so charcoal is often used as adsorption data to adsorb moisture, odor, etc.

Graphite Fastenings for High Temperature Furnace Elements2. Graphite products have excellent thermal conductivity, fast heat transfer, uniform heating, and save fuel.

Baking trays made of graphite, pots, etc. heat fast, and the baked food is heated evenly, cooked from the inside out, the heating time is short, not only pure taste, but also can lock the original nutrition of the food.

3. Graphite products have chemical stability and corrosion resistance, like this graphite fastenings: graphite connecting plate, or called "graphite connection plate"

Graphite has excellent chemical stability at room temperature, and is not corroded by any strong acids, strong bases and organic solvents. Therefore, even if the graphite products are used for a long time, there is very little wear and tear, and only the scrubbing and cleaning are the same as the new ones.

4. Graphite products have strong anti-oxidation effect and reduction effect.

Finished products, especially graphite mattresses, can generate negative oxygen ions after heating, activate the surrounding items, maintain human health, effectively prevent aging, and make the skin full of luster and elasticity.

5. Graphite products are environmentally friendly and healthy, no radioactive pollution, high temperature resistance.

Carbon must pass through at least a dozen days and nights of graphitization in a high temperature environment of 2000-3300 degrees to become graphite.

Customer first, quality first. According to the different needs of customers, Guang Xin Guo Neng can provide corresponding solutions. Your satisfaction is our constant pursuit. Guo Xin Guo Neng is willing to cooperate sincerely with people from all walks of life for mutual benefit and win-win results, and create brilliant together.

Product Parameters

CategoryBulk DensityResistivityShore HardnessFlexural StrengthCompressive StrengthYoung's ModulusPorosityAsh ContentGrain SizeCoefficient of Thermal ExpansionThermal ConductivityApplication Fields
g/cm³μΩmHSDMpaMpaGpa%PPMμm(indoor temp~600℃) 10^-6/℃(100℃) W/m﹒k
Molded GraphiteGXMG-11.6511~143015281523%/4mm2.650~60Crucible, Conventional Cast, etc
GXMG-21.6811~143517351320%/2mm3.560~80Crucible, Conventional Cast, Carbon Brushest, etc
GXMG-31.7010~134215351418%/0.8mm1.862~80Crucible, Alloy Cast, Carbon Brushest, etc
GXMG-41.7210~134224401317%/0.8mm1.565~85Crucible, Alloy Cast, Sintering Mold, Rodt, etc
GXMG-51.7510~134528551315%800/1.865~85Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rodt, etc
GXMG-61.789~124628581212%800/4.580~100Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
Isostatic GraphiteGXIG-11.7510~13423560916%50013~18μm4.880~120Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
GXIG-21.789~1242~5038701012%50010~15μm4.880~100Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
GXIG-31.809~1345~6040951112%5009~15μm4.885~110EDM, Furnace, Sintering Mold, Noble Metal Metallurgyt, etc
GXIG-41.829~135046961012%50013~15μm590~110photovoltaic, EDM, Sintering Mold, Noble Metal Metallurgyt, etc
GXIG-61.889~156052110108%5008~10μm5.595~120Fuel Cell, 3D Glass Moldt, etc
GXIG-71.909~14705512511//8~10μm5.5100~130Semiconductor, photovoltaict, etc
Mechanical graphiteM106H1.69~1.78/7560160/3%//4.013Sealing, bearing, compressor carbon vane, pump accessories (temperature tolerance: <220℃)t, etc
M106D2.2~2.3/7060160/2%//4.015Sealing, bearing (temperature tolerance:<350℃ under aerobic conditions, <550℃ under anaerobic conditions)t, etc



Packing & Delivery

Factory Direct Sale Industrial Carbon Graphite Block
Factory Direct Sale Industrial Carbon Graphite Block
Factory Direct Sale Industrial Carbon Graphite Block

1. Inside: use PE packaging and paste specification parameters

2. For short-distance: use carton packaging & inside foam board filling up interspace (appearance can be selected without text)

3. For long-distance transportation using carton + plywood box packaging (appearance of DIY text)

4. Delivery Port: Tianjin

Graphite Products Lead Time: 10-15 days after the order confirmation. Delivery by Express, Air also accepted.


Q1. Are you a factory or trading company?

A: We are an ISO9001-Qualified processing manufacturer with 3000 square meter of its own factory.

Q2. Can you introduce your main products?

A: Sure.

Beijing Guang Xin Guo Neng Technology Co., Ltd mainly produce graphite products, we can offer customized shape according to customers' specific demand. Our Graphite Products, include extruded graphite products, vibration moulding graphite products, molded graphite products, isostatic graphite products. We can produce a lot of graphite products, like graphite mold, graphite casting die, graphite heating element, graphite crucible, graphite sealing ring, graphite tube, graphite rod, graphite edm, graphite block etc.

Q3.What is your MOQ?

A: 1 piece (graphite block, graphite bearing, graphite material, graphite seal ring, graphite crucible, graphite products, graphite rod, graphite mold, graphite heater etc.).

Q4. Can you offer free samples?

A: Yes, usually we can offer free sample for you to check the quality, but do not pay the courier fee.
However, if the sample is expensive, like large size, we has to charge basic cost of the sample.
And Samples delivery time will be about 3-10 days.

Q5. When can I get the price?

A: We will reply you within 24 hours after getting your detailed requirements, like size, quantity etc. If it is an urgent order, you can call us directly.

Q6. Do you accept OEM or ODM orders?

A: Yes, we do.

Q7. How about your delivery time?

A: Usually 7 to 15 days after payment.

Q8. Do you test your goods before delivery?

A: Yes, we do test before delivery.

Q9. How do you keep long-term business relationship?

A: 1. Good quality and competitive price to ensure mutual benefit;
2. Quick reply and sincere service.

Notice: When you contact us, please show us the accurate drawing and your selected graphite material information, then we can offer you accurate price.
