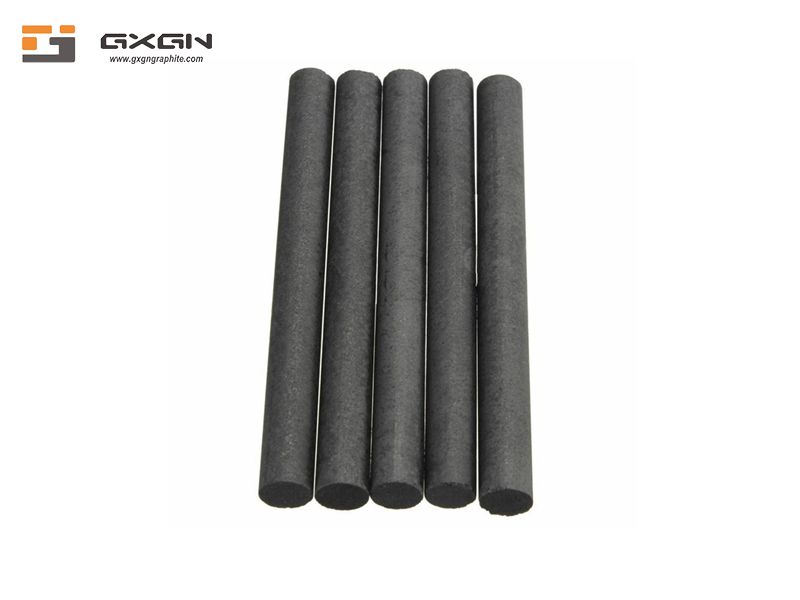

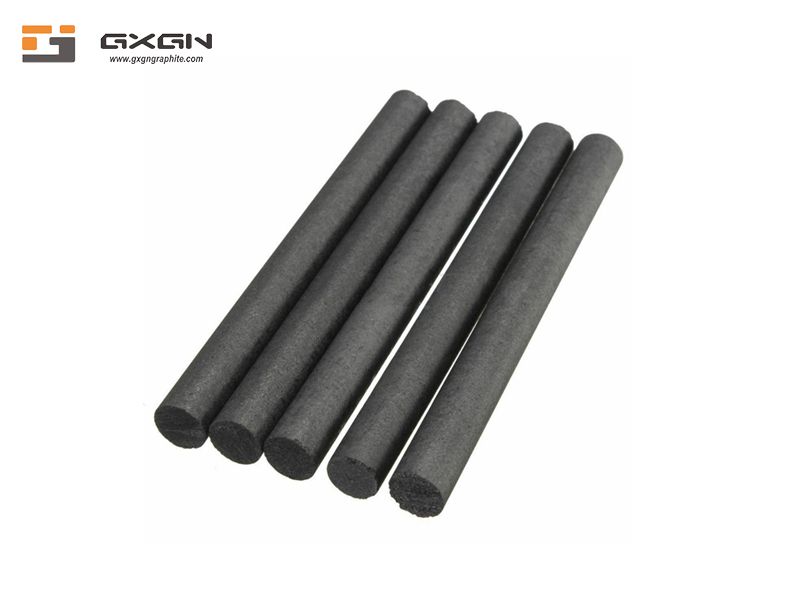

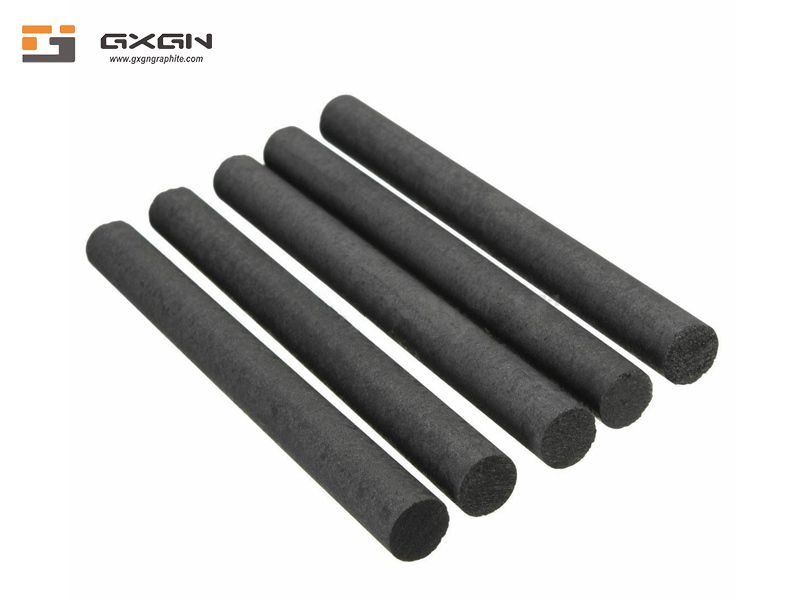

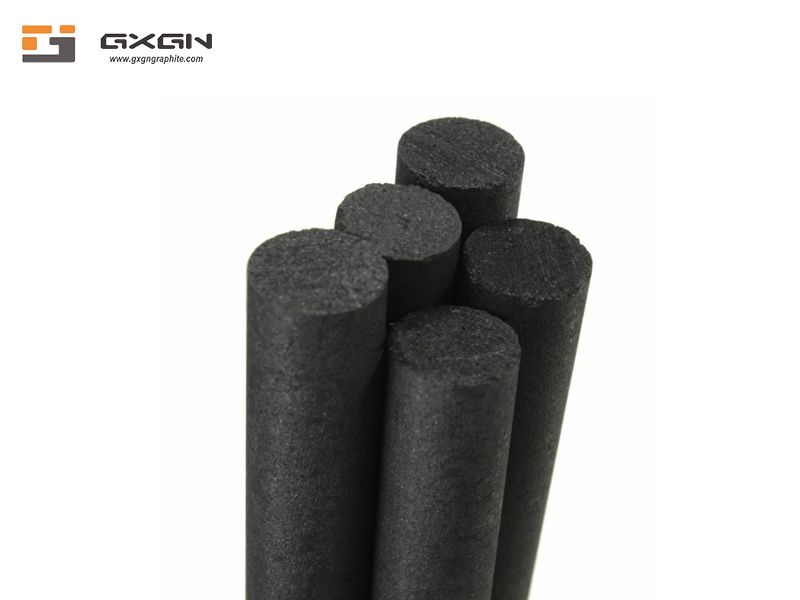

Graphite rod in the electrometallurgy of aluminium

Beijing Guang Xin Guo Neng Technology CO., Ltd. 12 years Graphite Products Exporter China | OEM & ODM Accepted | Customized High-precision Processing | ISO 9001 Passed

Product Description

Graphite rod in the electrometallurgy of aluminium


Application:

Graphite rods are commonly used in electric heaters of high-temperature vacuum furnaces. They have a small thermal expansion coefficient, a large thermal conductivity, good workability rods, high temperature resistance, excellent cold and extreme heat resistance, and cheaper prices. Common graphite rods include high-purity graphite rods, impregnated graphite rods, and conductive graphite rods.


High-purity graphite rods are made of high-density, high-strength, high-purity graphite, which is more wear-resistant than ordinary graphite, but also relatively wear-resistant. Some graphite products need to be on rotating equipment, so this needs to be super wear-resistant, because high-purity graphite will have dust when repeatedly rotated and rubbed, so that high-purity graphite rods are not very wear-resistant.


High-purity graphite rods have the following characteristics:


1. Excellent anti-corrosion performance: The product adopts high-quality graphite carbon material, and the organic compound with strong acid resistance is added, which effectively reduces the porosity of the product and increases the volume density of the product, so the product has excellent anti-corrosion properties. Corrosion performance and strong wear resistance.


2. Stable performance and strong durability: The product adopts high-strength organic glue as a binder, while introducing high-tech additives, so the product has high strength, good wear resistance, and the structure is extremely stable.


3. Overall dimensions: Compression molding is used. The products have good molding quality and overall dimensions, and can produce special products according to user requirements, which can fully meet the requirements of construction masonry technology.

Graphite rod in the electrometallurgy of aluminium

Graphite sealing rod for stirring
Typical Sizes
Diameter (mm) 2-30 35, 40, 45, 50, 60, 75, 100, 120mm
 Length (mm) 10-100,100-200,200-300,300-600, 550-2200mm
 produce as customer's size or drawings.

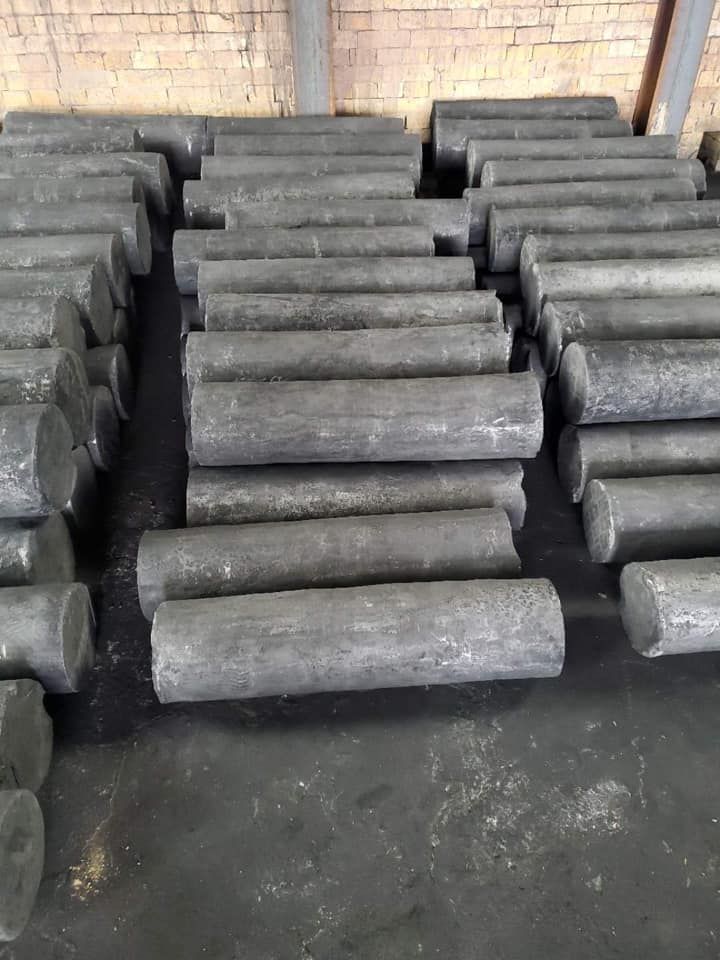

Machined parts used graphite electrode Graphite Block Rod
Typical Sizes
Diameter (mm) 2-30 35, 40, 45, 50, 60, 75, 100, 120mm
Length (mm) 300-600, 550-2200mm

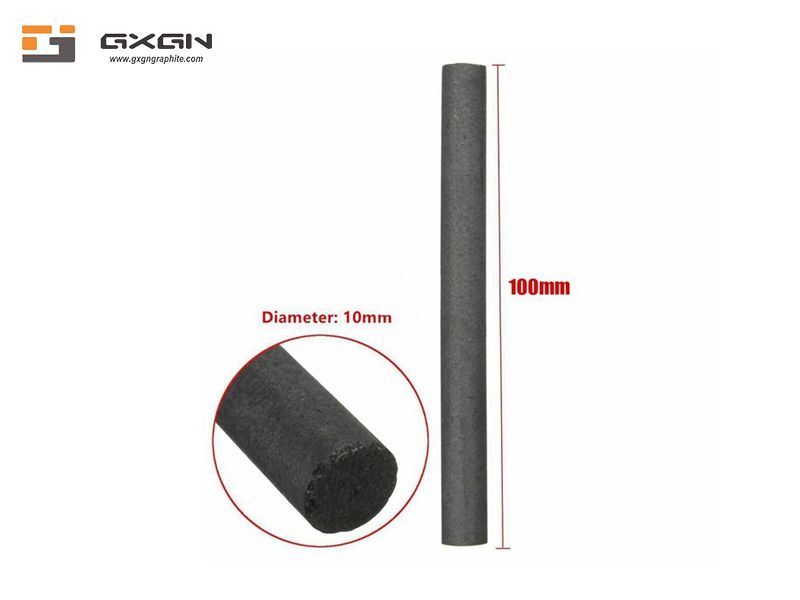

Graphite Spectral analysis rods
Typical Sizes
 Diameter (mm) 6mm 8mm 10mm 11mm 12mm 13mm 15mm


Product Parameters

CategoryBulk DensityResistivityShore HardnessFlexural StrengthCompressive StrengthYoung's ModulusPorosityAsh ContentGrain SizeCoefficient of Thermal ExpansionThermal ConductivityApplication Fields
g/cm³μΩmHSDMpaMpaGpa%PPMμm(indoor temp~600℃) 10^-6/℃(100℃) W/m﹒k
Molded GraphiteGXMG-11.6511~143015281523%/4mm2.650~60Crucible, Conventional Cast, etc
GXMG-21.6811~143517351320%/2mm3.560~80Crucible, Conventional Cast, Carbon Brushest, etc
GXMG-31.7010~134215351418%/0.8mm1.862~80Crucible, Alloy Cast, Carbon Brushest, etc
GXMG-41.7210~134224401317%/0.8mm1.565~85Crucible, Alloy Cast, Sintering Mold, Rodt, etc
GXMG-51.7510~134528551315%800/1.865~85Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rodt, etc
GXMG-61.789~124628581212%800/4.580~100Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
Isostatic GraphiteGXIG-11.7510~13423560916%50013~18μm4.880~120Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
GXIG-21.789~1242~5038701012%50010~15μm4.880~100Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
GXIG-31.809~1345~6040951112%5009~15μm4.885~110EDM, Furnace, Sintering Mold, Noble Metal Metallurgyt, etc
GXIG-41.829~135046961012%50013~15μm590~110photovoltaic, EDM, Sintering Mold, Noble Metal Metallurgyt, etc
GXIG-51.859~124848951112%50013~15μm595~115
GXIG-61.889~156052110108%5008~10μm5.595~120Fuel Cell, 3D Glass Moldt, etc
GXIG-71.909~14705512511//8~10μm5.5100~130Semiconductor, photovoltaict, etc
Mechanical graphiteM106H1.69~1.78/7560160/3%//4.013Sealing, bearing, compressor carbon vane, pump accessories (temperature tolerance: <220℃)t, etc
M120K1.7~1.85/7562150/3%//4.013
M106D2.2~2.3/7060160/2%//4.015Sealing, bearing (temperature tolerance:<350℃ under aerobic conditions, <550℃ under anaerobic conditions)t, etc
M120D2.2~2.3/7565160/2%//4.015
M170D2.2~2.3/8065180/2%//4.015

Our Company

Beijing Guang Xin Guo Neng Technology Co., Ltd, was established in 2008 and is located in Beijing, China. As a professional graphite products manufacturer, we are specialized in research, development, production, sale and service of graphite in graphite electrode, graphite mold, graphite powder, graphite rod and other graphite products.


Our products are widely used in various industries and fields such as aerospace, military industry, electric power, railway, non-ferrous metallurgy, machinery, semiconductors, high-temperature furnace heating and so on.


Our company has strong technical strength, excellent manufacturing equipment, standardized management system, superb production technology, and complete testing methods. It is the one of the first group to achieve ISO 9 0 0 1 certification in the same industry.


With our own factory and advanced production equipment, such as Vertical Machining Centers, CNC lathes, milling machines, sawing machines and other advanced production equipment, we can provide professional solutions based on customer requirements.


Furthermore, our staffs are experienced, committed to strict quality inspection and thoughtful customer service.


Our products are not only sold well in China, but also exported to India, Vietnam, Thailand, Russia, Germany and North America.


We also undertake OEM and ODM orders. Whether your company is selecting a product from our existing catalog or you are looking for help in engineering applications, please feel free to contact our customer service center and inform us your purchase requirements.


Welcome to visit our factory and cooperate with us in future.


Custom China Graphite products: all kinds of graphite crucibles, graphite heaters, junction plates, graphite electrode rods, graphite rod, Graphite sealing rod for stirring, Graphite Block Rod, graphite bar, Graphite Spectral analysis rods, graphite tubes, bolts and nuts, bearings, sealing rings, and etc.

Packing & Delivery

Factory Direct Sale Industrial Carbon Graphite Block
Factory Direct Sale Industrial Carbon Graphite Block
Factory Direct Sale Industrial Carbon Graphite Block

1. Inside: use PE packaging and paste specification parameters

2. For short-distance: use carton packaging & inside foam board filling up interspace (appearance can be selected without text)

3. For long-distance transportation using carton + plywood box packaging (appearance of DIY text)

4. Delivery Port: Tianjin

Graphite Products Lead Time: 10-15 days after the order confirmation. Delivery by Express, Air also accepted.
