Manufacturer Sells High Quality Graphite Mold Casting Graphite Mould Casting

Beijing Guang Xin Guo Neng Technology CO., Ltd. 12 years Graphite Products & Graphite Casting Molding Manufacturer Exporter in China | OEM & ODM Accepted | Customized High-precision Processing | ISO 9001 Passed

Product Description

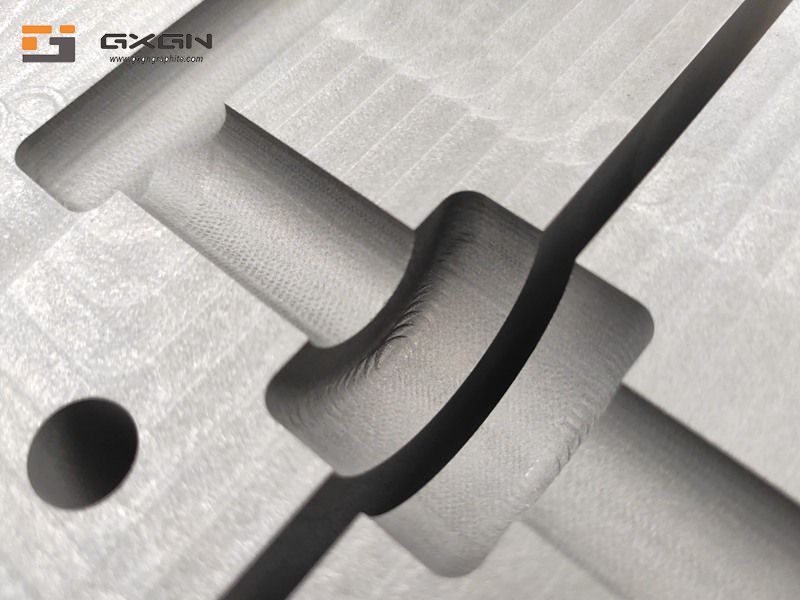

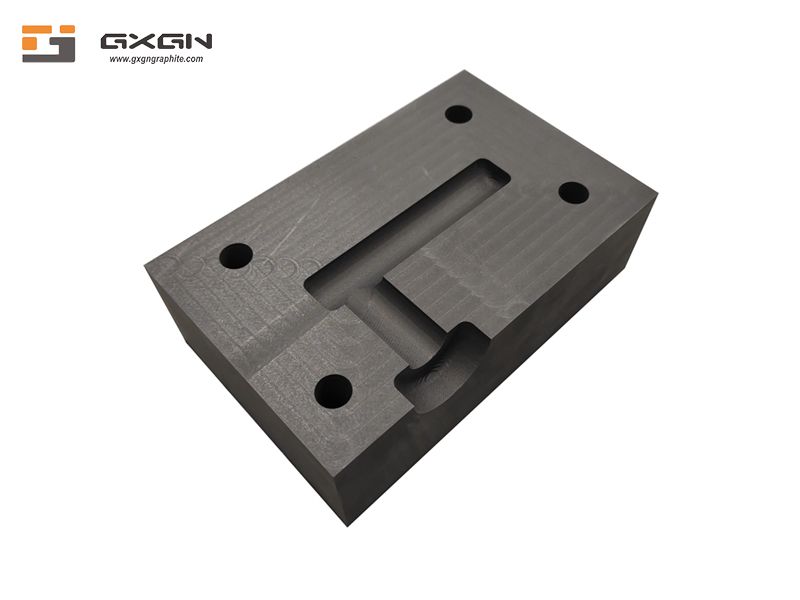

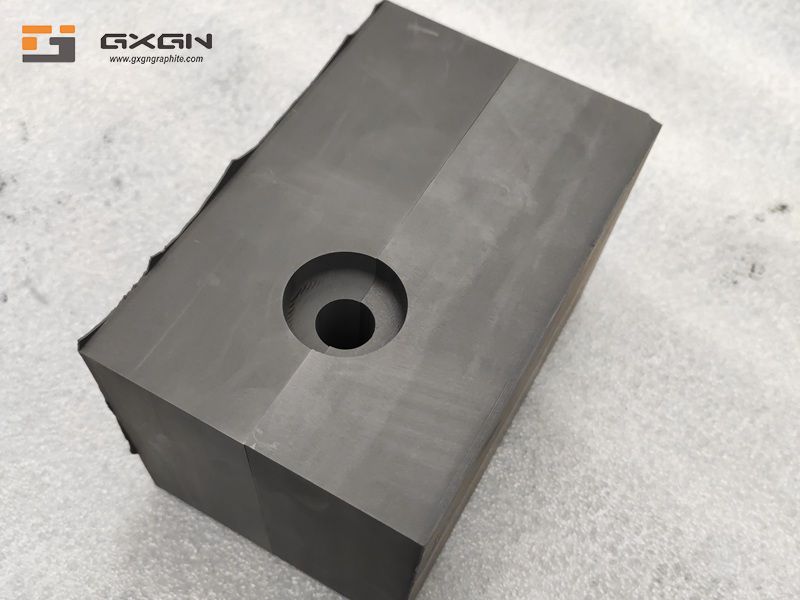

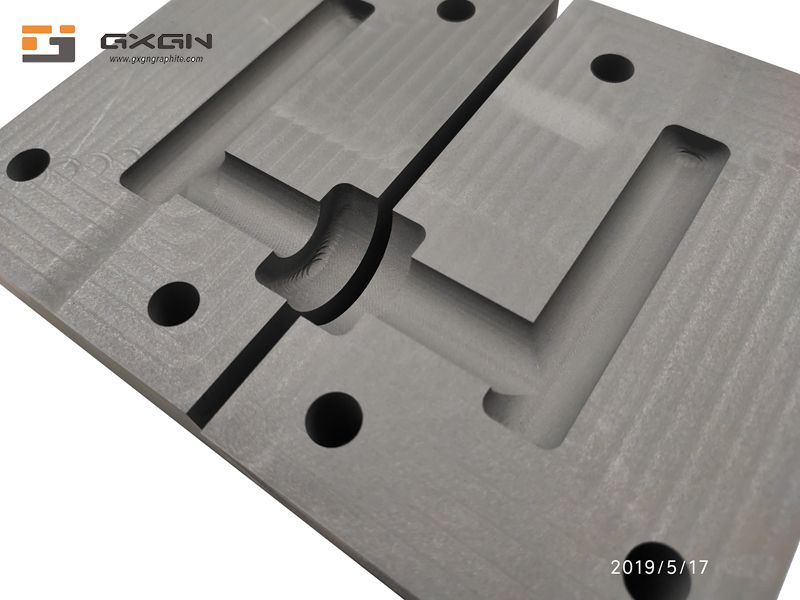

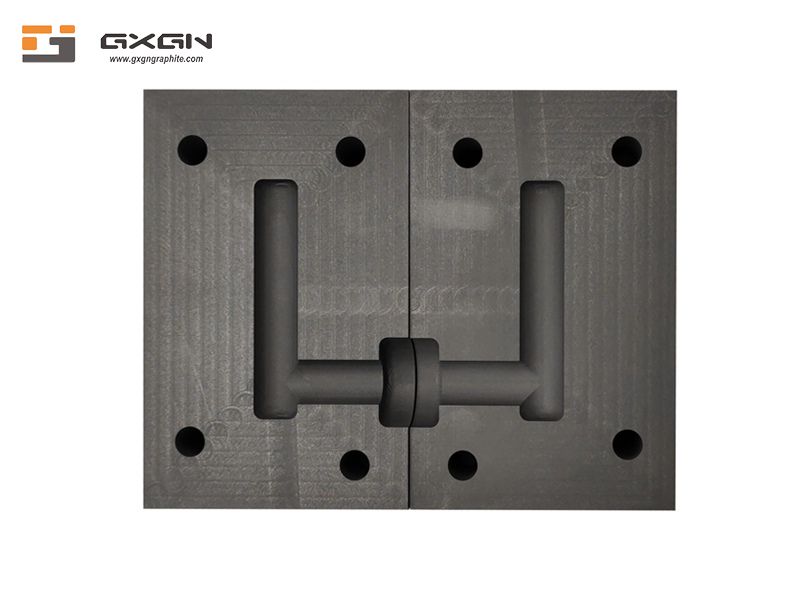

Manufacturer Sells High Quality Graphite Mold Casting Graphite Mould Casting


Beijing Guang Xin Guo Neng Technology Co., Ltd is the professional manufacturer and exporter of the graphite products, like graphite mold, graphite moulds, etc. We have passed ISO9001 international quality system certificate. The past 10 years of coorperation with university and factories has demonstrated that we can provide professional technical support and high precision processing for customers.


Mold is the most basic process equipment in industrial production. In the current industrial product production, product parts are widely used stamping, forging, die casting, extrusion, plastic injection or other forming processing methods, matching with the forming mold to make the blank Formed into parts that meet product requirements. The various tools and products used in our daily production and life range from the base of the machine tool and the shell of the machine body to the shell of a screw, button and various household appliances, all of which are closely related to the mold. The shape of the mold determines the shape of these products, and the processing quality and precision of the mold also determine the quality of these products. In recent years, the mold industry has developed rapidly. Graphite materials, new processes and increasing mold factories are constantly impacting the mold market. With its good physical and chemical properties, graphite has gradually become the first choice for mold making.



For continuous casting and semi-continuous casting of non-ferrous metals

In recent years, advanced production methods such as direct continuous (or semi-continuous) production of rods or pipes from molten metal are being promoted at home and abroad. Domestically, this method has been adopted in copper, copper alloy, aluminum, aluminum alloy and so on. Artificial graphite is considered to be the most suitable material as a mold for continuous casting or semi-continuous casting of non-ferrous metals. Production practice proves that due to the use of graphite mold, due to its good thermal conductivity (the thermal conductivity determines the solidification speed of the metal or alloy), the mold's self-lubricating performance and other factors not only increase the mold speed, but also due to the size of the ingot Accurate, smooth surface, uniform crystal structure, can be directly processed in the next procedure. This not only greatly improves the yield rate and reduces the loss of waste products, but also greatly improves the quality of products. There are two types of continuous casting methods: vertical continuous casting and horizontal continuous casting.



Dies for pressure casting

Artificial graphite materials have been successfully used for pressure casting of non-ferrous metals. For example, zinc alloy and copper alloy castings produced by pressure casting molds made of artificial graphite materials have been used in automobile parts, etc.



Graphite mold for centrifugal casting

Graphite mold has been successfully applied to centrifugal casting. The United States has used artificial graphite casting molds with a wall thickness of more than 25 mm to centrifugally cast bronze bushings. In order to prevent the artificial graphite mold from burning, certain anti-oxidation measures can be taken. After casting a certain number of castings, if it is found that the inner surface of the mold is burned, the size of the inner hole of the mold can be enlarged to be used for casting large-size casings.



Graphite hot pressing die mold

The artificial graphite hot-pressing die used in the pressure sintering of cemented carbide has the following characteristics: First, if the pressing temperature is increased to 1350-1450 degrees, the required unit pressure can be reduced to 67-100 kgf/cm2 (That is, 1/10 of the cold pressing pressure); the second is that pressing and heating are performed in the same process, and a compact sintered body can be obtained after a short time of sintering.



Graphite Glass mould

Graphite materials have chemical stability, are not easily infiltrated by molten glass, and will not change the composition of glass. Graphite materials have good thermal shock resistance and small changes in temperature with temperature. Therefore, they have become indispensable molds in glass manufacturing in recent years. Material, it can be used to make glass tubes, elbows, funnels and other molds for various shaped glass bottles.



Graphite sintering dies and other diamond sintering dies

Taking advantage of the extremely small thermal deformation of artificial graphite materials, sintering molds and brackets for transistors can be manufactured, which are now widely used. It has become an indispensable material for the development of the semiconductor industry. In addition, graphite molds are also used in casting molds for cast iron, durable casting molds for various non-ferrous metals, casting molds for cast steel, casting molds for heat-resistant metals (titanium, zirconium, molybdenum, etc.) and aluminum for welding rails. Hot-welded molds, etc.


Graphite molds for hot-pressed sintered diamond tools bear the dual roles of heating element and mold support in the diamond tool manufacturing process. The quality of graphite molds directly affects the dimensional accuracy and appearance of diamond tools. Hot pressing sintering process requirements: temperature reaches (1000 ± 2) ℃, molding pressure 16 ~ 50MPa, insulation pressure holding time is 15 ~ 30min, the environment is non-vacuum state. Under this working condition, not only the graphite mold of the forming and heating element is required to have electrical conductivity, high resistivity, and sufficient mechanical strength, but also it needs to have good oxidation resistance and a long service life to ensure diamond The dimensional accuracy and excellent performance of the tool. At present, graphite mold materials for diamond tool manufacturing in western developed countries are mainly graphite materials with ultra-fine particle structure, high purity and high graphitization degree, and their average particle size is required to be less than 15μm, even below 10μm, and medium pore size is less than 2μm. The graphite mold made of this carbon raw material has small porosity, dense structure, high surface finish, strong oxidation resistance, and an average service life of 30 to 40 times. Diamond molds require high hardness, good oxidation resistance, and high processing accuracy. The use of high-quality graphite raw materials greatly extends the service life of the mold and improves its oxidation resistance.



Graphite EDM processing

Graphite moulds are increasingly becoming the main process equipment for industrial mass production in the fields of household appliances, automobiles, electromechanics, aerospace and other industries, and undertake the processing and production of 60%-90% of product parts in these industries. In recent years, high-speed milling has broken through the limitation that traditional milling is difficult to process high-hardness, high-strength, high-toughness mold materials. However, EDM has the advantages of high processing accuracy and high surface quality, and a wide processing range, especially in the processing of mold cavities of complex, precise, thin-walled, narrow slits, and high-hard materials, which is unmatched by high-speed milling. EDM will still be the main means of mold cavity machining. Graphite electrodes (compared to copper) have the advantages of low electrode consumption, fast discharge machining speed, good machining performance, light weight, and small thermal expansion coefficient. They gradually replace copper electrodes and become the mainstream of electroprocessing electrodes. Compared with copper, graphite electrodes have the advantages of low consumption, fast discharge speed, light weight and small thermal expansion coefficient. Therefore, they gradually replace copper electrodes and become the mainstream of discharge machining electrodes.

Product Parameters

CategoryBulk DensityResistivityShore HardnessFlexural StrengthCompressive StrengthYoung's ModulusPorosityAsh ContentGrain SizeCoefficient of Thermal ExpansionThermal ConductivityApplication Fields
g/cm³μΩmHSDMpaMpaGpa%PPMμm(indoor temp~600℃) 10^-6/℃(100℃) W/m﹒k
Molded GraphiteGXMG-11.6511~143015281523%/4mm2.650~60Crucible, Conventional Cast, etc
GXMG-21.6811~143517351320%/2mm3.560~80Crucible, Conventional Cast, Carbon Brushest, etc
GXMG-31.7010~134215351418%/0.8mm1.862~80Crucible, Alloy Cast, Carbon Brushest, etc
GXMG-41.7210~134224401317%/0.8mm1.565~85Crucible, Alloy Cast, Sintering Mold, Rodt, etc
GXMG-51.7510~134528551315%800/1.865~85Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rodt, etc
GXMG-61.789~124628581212%800/4.580~100Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
Isostatic GraphiteGXIG-11.7510~13423560916%50013~18μm4.880~120Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
GXIG-21.789~1242~5038701012%50010~15μm4.880~100Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
GXIG-31.809~1345~6040951112%5009~15μm4.885~110EDM, Furnace, Sintering Mold, Noble Metal Metallurgyt, etc
GXIG-41.829~135046961012%50013~15μm590~110photovoltaic, EDM, Sintering Mold, Noble Metal Metallurgyt, etc
GXIG-51.859~124848951112%50013~15μm595~115
GXIG-61.889~156052110108%5008~10μm5.595~120Fuel Cell, 3D Glass Moldt, etc
GXIG-71.909~14705512511//8~10μm5.5100~130Semiconductor, photovoltaict, etc
Mechanical graphiteM106H1.69~1.78/7560160/3%//4.013Sealing, bearing, compressor carbon vane, pump accessories (temperature tolerance: <220℃)t, etc
M120K1.7~1.85/7562150/3%//4.013
M106D2.2~2.3/7060160/2%//4.015Sealing, bearing (temperature tolerance:<350℃ under aerobic conditions, <550℃ under anaerobic conditions)t, etc
M120D2.2~2.3/7565160/2%//4.015
M170D2.2~2.3/8065180/2%//4.015

Our Strength

We focus on graphite processing for 20 years and have rich design and processing experience. Protect your most concerned data (material indicators, product quality, delivery time, cost and accuracy).


There are dozens of product designers, mold designers, programmers, craftsmen and other technical personnel; skilled technicians will ensure that your products are processed and delivered as required.


No matter which drawing file you send (x_t / prt / dwg / pdf / exb, ect ..), we can process it according to the drawings.


Dozens of CNC machining centers, dozens of CNC lathes, milling machines, grinding machines, sawing machines, etc.


Material indicators: tear resistance, compression resistance, impact resistance, resistivity, ash, strength, density and other data professional testing (universal testing machine, impact testing machine, resistivity tester, etc.)


We can design graphite mold by customer's parts drawing, and process all kinds of complex and special shape mold or other production.


We are the direct supplier of ZGM system with good quality. Inventory: ZGM50/65/80/95/113/123/133 all series carbon ring


China Exporter GXGN Graphite products: all kinds of graphite crucibles, graphite heaters, graphite molds for aluminum, graphite molds for copper, graphite molds for silver, graphite bolts and nuts, graphite molds for glass casting, graphite sealing rings, and graphite casting mold, graphite mold, graphite mould etc.

Packing & Delivery

Factory Direct Sale Industrial Carbon Graphite Block
Factory Direct Sale Industrial Carbon Graphite Block
Factory Direct Sale Industrial Carbon Graphite Block

1. Inside: use PE packaging and paste specification parameters

2. For short-distance: use carton packaging & inside foam board filling up interspace (appearance can be selected without text)

3. For long-distance transportation using carton + plywood box packaging (appearance of DIY text)

4. Delivery Port: Tianjin

Graphite Products Lead Time: 10-15 days after the order confirmation. Delivery by Express, Air also accepted.

FAQ

Q1. Are you a factory or trading company?

A: We are an ISO9001-Qualified processing manufacturer with 3000 square meter of its own factory.

Q2. Can you introduce your main products?

A: Sure.

Beijing Guang Xin Guo Neng Technology Co., Ltd mainly produce graphite products, we can offer customized shape according to customers' specific demand. Our Graphite Products, include extruded graphite products, vibration moulding graphite products, molded graphite products, isostatic graphite products. We can produce a lot of graphite products, like graphite mold, graphite casting die, graphite heating element, graphite crucible, graphite sealing ring, graphite tube, graphite rod, graphite edm, graphite block etc.

Q3.What is your MOQ?

A: 1 piece (graphite block, graphite bearing, graphite material, graphite seal ring, graphite crucible, graphite products, graphite rod, graphite mold, graphite heater etc.).

Q4. Can you offer free samples?

A: Yes, usually we can offer free sample for you to check the quality, but do not pay the courier fee.
However, if the sample is expensive, like large size, we has to charge basic cost of the sample.
And Samples delivery time will be about 3-10 days.

Q5. When can I get the price?

A: We will reply you within 24 hours after getting your detailed requirements, like size, quantity etc. If it is an urgent order, you can call us directly.

Q6. Do you accept OEM or ODM orders?

A: Yes, we do.

Q7. How about your delivery time?

A: Usually 7 to 15 days after payment.

Q8. Do you test your goods before delivery?

A: Yes, we do test before delivery.

Q9. How do you keep long-term business relationship?

A: 1. Good quality and competitive price to ensure mutual benefit;
2. Quick reply and sincere service.

Notice: When you contact us, please show us the accurate drawing and your selected graphite material information, then we can offer you accurate price.
