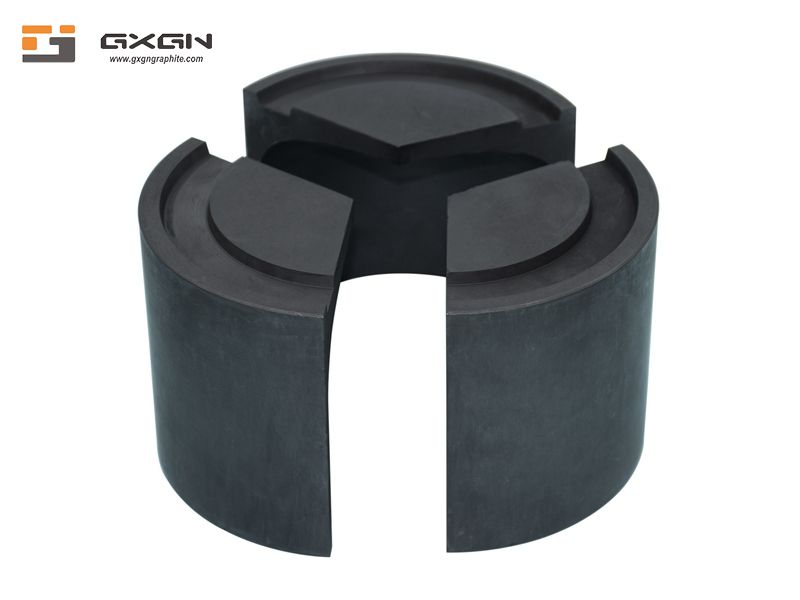

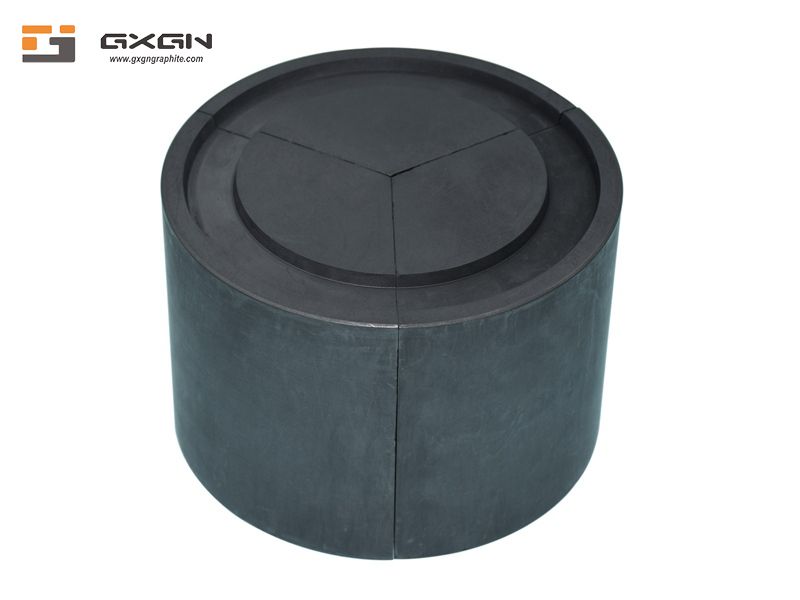

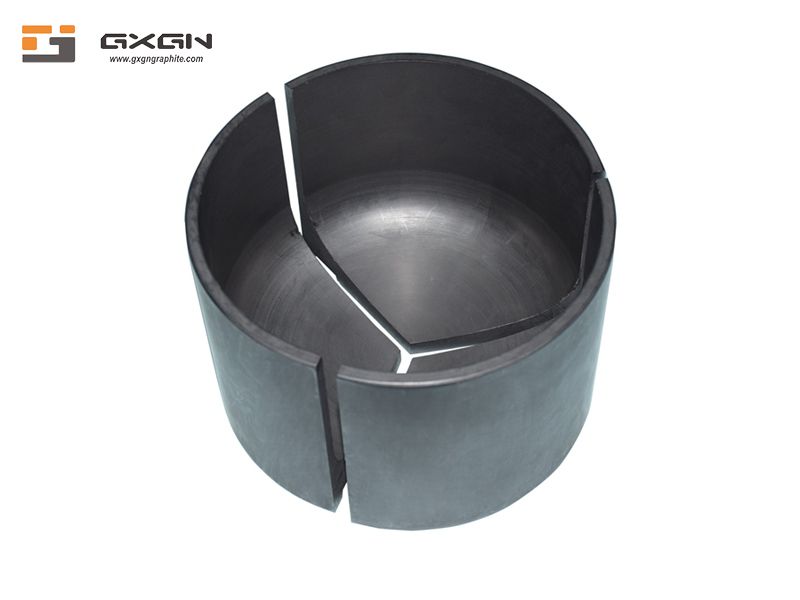

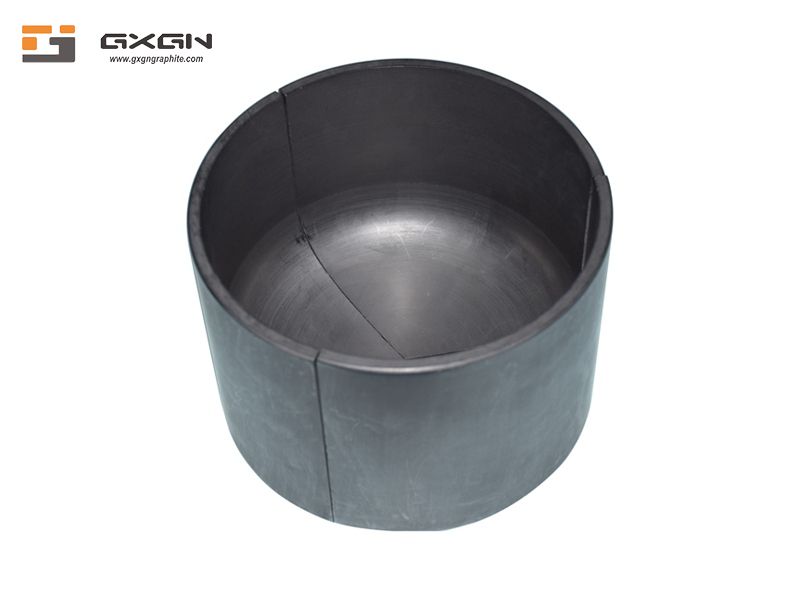

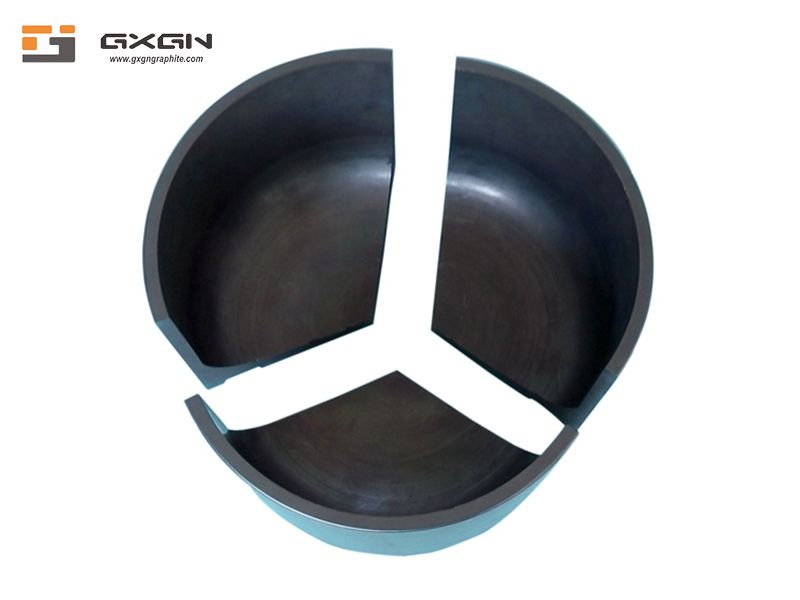

Factory Direct Sale Graphite Pot Crucible for Industry

High strength (Flexural strength: 38/43/55Mpa Compressive strength: 65/86/95Mpa with rising of temperature, graphite strength increases)

Product Description

Factory Direct Sale Graphite Pot Crucible for Industry

Advantage

High strength (Flexural strength: 38/43/55Mpa Compressive strength: 65/86/95Mpa with rising of temperature, graphite strength increases)

High purity (Carbon: 99.5%)

High temperature resistance (graphite material melting point is 3850±50)

Good heat shock resistance.

Remarkable chemical corrosion resistance

Good acid resistance


Size and Shape:

Customized designing and production (machining) available.


Epquipment:

CNC lathes, milling machines and other advanced production equipment for both small and large graphite parts.


Material

Our experienced and well-trained engineers will offer professional suggestions in choosing the most suitable

grade of graphite material for machining graphite mold for you, in order to reach the best effect with lowest cost.


Technical support:

We are glad to have more technical aspect communication in order to improve your purchasing cost efficiency.


Quality stability:

The process technology of forming under high pressure and quality guarantee system will fully ensure the stability of quality.


Large Inventory:

Various material specifications, including electrode graphite, high-purity graphite, isostatic pressing formed graphite and etc.

Product Parameters

CategoryBulk DensityResistivityShore HardnessFlexural StrengthCompressive StrengthYoung's ModulusPorosityAsh ContentGrain SizeCoefficient of Thermal ExpansionThermal ConductivityApplication Fields
g/cm³μΩmHSDMpaMpaGpa%PPMμm(indoor temp~600℃) 10^-6/℃(100℃) W/m﹒k
Molded GraphiteGXMG-11.6511~143015281523%/4mm2.650~60Crucible, Conventional Cast, etc
GXMG-21.6811~143517351320%/2mm3.560~80Crucible, Conventional Cast, Carbon Brushest, etc
GXMG-31.7010~134215351418%/0.8mm1.862~80Crucible, Alloy Cast, Carbon Brushest, etc
GXMG-41.7210~134224401317%/0.8mm1.565~85Crucible, Alloy Cast, Sintering Mold, Rodt, etc
GXMG-51.7510~134528551315%800/1.865~85Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rodt, etc
GXMG-61.789~124628581212%800/4.580~100Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
Isostatic GraphiteGXIG-11.7510~13423560916%50013~18μm4.880~120Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
GXIG-21.789~1242~5038701012%50010~15μm4.880~100Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc
GXIG-31.809~1345~6040951112%5009~15μm4.885~110EDM, Furnace, Sintering Mold, Noble Metal Metallurgyt, etc
GXIG-41.829~135046961012%50013~15μm590~110photovoltaic, EDM, Sintering Mold, Noble Metal Metallurgyt, etc
GXIG-51.859~124848951112%50013~15μm595~115
GXIG-61.889~156052110108%5008~10μm5.595~120Fuel Cell, 3D Glass Moldt, etc
GXIG-71.909~14705512511//8~10μm5.5100~130Semiconductor, photovoltaict, etc
Mechanical graphiteM106H1.69~1.78/7560160/3%//4.013Sealing, bearing, compressor carbon vane, pump accessories (temperature tolerance: <220℃)t, etc
M120K1.7~1.85/7562150/3%//4.013
M106D2.2~2.3/7060160/2%//4.015Sealing, bearing (temperature tolerance:<350℃ under aerobic conditions, <550℃ under anaerobic conditions)t, etc
M120D2.2~2.3/7565160/2%//4.015
M170D2.2~2.3/8065180/2%//4.015

Our Strength

We focus on graphite processing for 20 years and have rich design and processing experience. Protect your most concerned data (material indicators, product quality, delivery time, cost and accuracy).


There are dozens of product designers, mold designers, programmers, craftsmen and other technical personnel; skilled technicians will ensure that your products are processed and delivered as required.


No matter which drawing file you send (x_t / prt / dwg / pdf / exb, ect ..), we can process it according to the drawings.


Dozens of CNC machining centers, dozens of CNC lathes, milling machines, grinding machines, sawing machines, etc.


Material indicators: tear resistance, compression resistance, impact resistance, resistivity, ash, strength, density and other data professional testing (universal testing machine, impact testing machine, resistivity tester, etc.)


We can design graphite mold by customer's parts drawing, and process all kinds of complex and special shape mold or other production.


We are the direct supplier of ZGM system with good quality. Inventory: ZGM50/65/80/95/113/123/133 all series carbon ring


Graphite production: all kinds of crucibles, heaters, junction plates, electrode rods, graphite tubes, bolts and nuts, bearings, sealing rings, and etc.

Packing & Delivery

Factory Direct Sale Industrial Carbon Graphite Block
Factory Direct Sale Industrial Carbon Graphite Block
Factory Direct Sale Industrial Carbon Graphite Block

1. Inside: use PE packaging and paste specification parameters

2. For short-distance: use carton packaging & inside foam board filling up interspace (appearance can be selected without text)

3. For long-distance transportation using carton + plywood box packaging (appearance of DIY text)

4. Delivery Port: Tianjin

Graphite Products Lead Time: 10-15 days after the order confirmation. Delivery by Express, Air also accepted.

FAQ

Q1. Are you a factory or trading company?

A: We are an ISO9001-Qualified processing manufacturer with 3000 square meter of its own factory.

Q2. Can you introduce your main products?

A: Sure.

Beijing Guang Xin Guo Neng Technology Co., Ltd mainly produce graphite products, we can offer customized shape according to customers' specific demand. Our Graphite Products, include extruded graphite products, vibration moulding graphite products, molded graphite products, isostatic graphite products. We can produce a lot of graphite products, like graphite mold, graphite casting die, graphite heating element, graphite crucible, graphite sealing ring, graphite tube, graphite rod, graphite edm, graphite block etc.

Q3.What is your MOQ?

A: 1 piece (graphite block, graphite bearing, graphite material, graphite seal ring, graphite crucible, graphite products, graphite rod, graphite mold, graphite heater etc.).

Q4. Can you offer free samples?

A: Yes, usually we can offer free sample for you to check the quality, but do not pay the courier fee.
However, if the sample is expensive, like large size, we has to charge basic cost of the sample.
And Samples delivery time will be about 3-10 days.

Q5. When can I get the price?

A: We will reply you within 24 hours after getting your detailed requirements, like size, quantity etc. If it is an urgent order, you can call us directly.

Q6. Do you accept OEM or ODM orders?

A: Yes, we do.

Q7. How about your delivery time?

A: Usually 7 to 15 days after payment.

Q8. Do you test your goods before delivery?

A: Yes, we do test before delivery.

Q9. How do you keep long-term business relationship?

A: 1. Good quality and competitive price to ensure mutual benefit;
2. Quick reply and sincere service.

Notice: When you contact us, please show us the accurate drawing and your selected graphite material information, then we can offer you accurate price.
